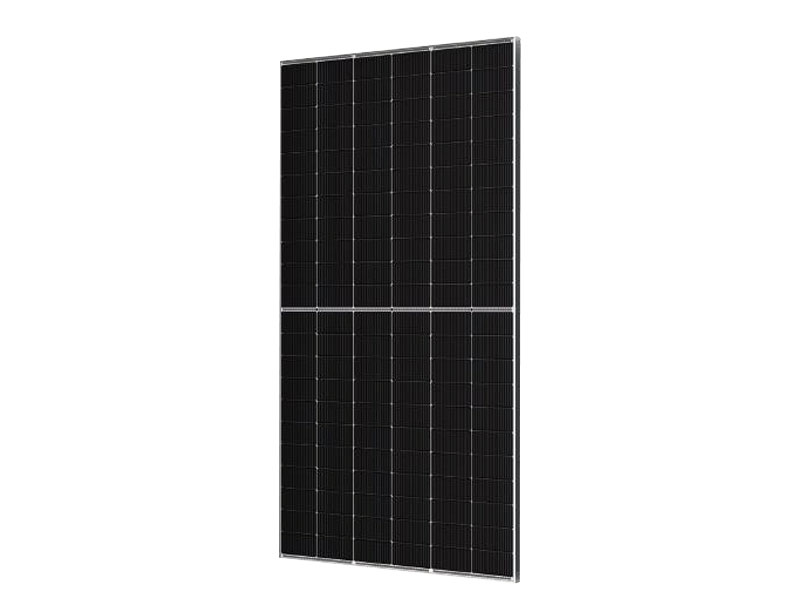

Hanersun 625W Bifacial N-Type TOPCon Solar Panel

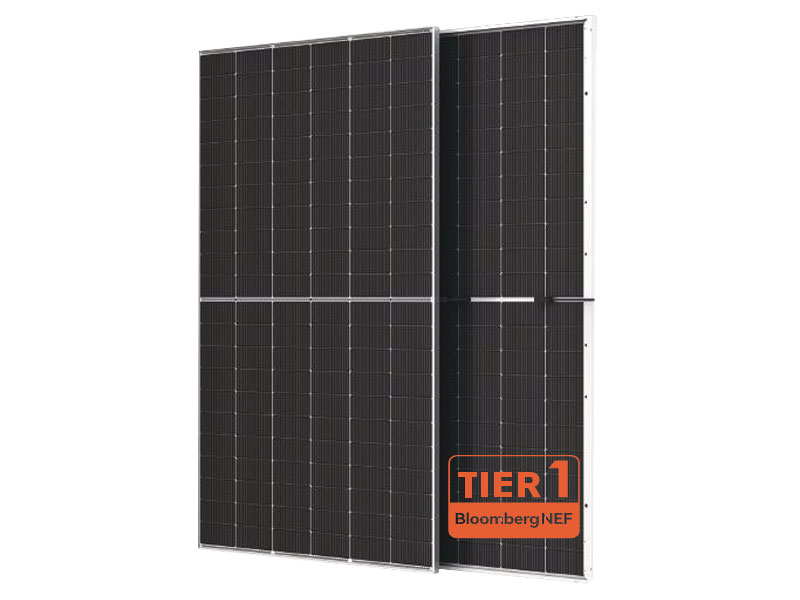

Hanersun 625W Bifacial Solar Panel (HN21RN-66HT625W)

Overview of the Hanersun 625W Bifacial Solar Panel

The Hanersun 625W bifacial solar panel is a high-efficiency N-type TOPCon photovoltaic module designed for large residential, commercial, and utility-scale solar installations. Using advanced N-type cell technology and bifacial power generation, this panel delivers high energy yield, excellent temperature performance, and long-term reliability in demanding environments.

What the Hanersun 625W Panel Is Designed to Do

This solar panel converts sunlight into DC electrical power and is designed to:

• Deliver high power output per module to reduce balance-of-system costs
• Increase total energy production through bifacial rear-side generation
• Maintain strong performance in high-temperature conditions
• Provide long service life with low annual degradation

What This Panel Is Not

This product is a photovoltaic module only.

• It is not an inverter and does not output AC power
• It does not store electrical energy
• It does not include mounting hardware, cabling, or protection devices

Cell Technology and Module Design

The Hanersun 625W panel uses advanced N-type TOPCon monocrystalline cells combined with multi-busbar (MBB) technology.

• Cell type: N-type monocrystalline TOPCon (210R)
• Cell configuration: 132 cells [2 × (11 × 6)]
• MBB design improves current collection and reduces resistive losses
• Lower risk of hot spots and micro-cracking

Electrical Performance (STC)

• Nominal maximum power (Pmax): 625 W
• Maximum power voltage (Vmp): 41.13 V
• Maximum power current (Imp): 15.20 A
• Open-circuit voltage (Voc): 49.32 V
• Short-circuit current (Isc): 16.12 A
• Module efficiency: 23.1%
• Power tolerance: 0 ~ +3%

Bifacial Performance

The bifacial design allows the rear side of the module to generate additional energy from reflected light.

• Bifaciality factor: 80 ± 5%
• Rear-side energy gain depends on installation height, tilt, and surface reflectivity
• Suitable for ground-mounted, elevated, and high-albedo installations

Temperature Performance

• Temperature coefficient of Pmax: -0.28% / °C
• Temperature coefficient of Voc: -0.23% / °C
• Temperature coefficient of Isc: +0.045% / °C
• Lower operating temperature improves real-world energy yield

Mechanical Specifications

• Module dimensions: 2382 × 1134 × 30 mm
• Weight: 32.5 kg
• Front glass: 2.0 mm heat-strengthened glass
• Rear glass: 2.0 mm heat-strengthened glass
• Frame material: Anodised aluminium alloy

Junction Box and Cabling

• Junction box rating: IP68
• Output cable size: 4.0 mm²
• Connector type: MC4-EVO 2A or compatible
• Cable length: 300 mm positive / 300 mm negative

Operating Limits and Ratings

• Operating temperature range: -40°C to +85°C
• Maximum system voltage: 1500 V DC (IEC)
• Maximum series fuse rating: 35 A
• Fire class rating: Class C

Mechanical Load Ratings

• Maximum snow load: 5400 Pa
• Maximum wind load: 2400 Pa

Certifications and Compliance

• IEC 61215 and IEC 61730
• CE certification
• TÜV certification
• ETL / UL listed (region dependent)

Warranty Information

• Product warranty: 15 years
• Performance warranty: 30-year linear power output warranty
• First-year degradation: ≤1%
• Annual degradation thereafter: ≤0.4%

Typical Applications

• Large residential rooftop solar systems
• Commercial and industrial installations
• Ground-mounted and utility-scale solar plants
• High-efficiency bifacial solar arrays
