Canadian Solar 620W N-Type Bifacial Solar Panel
R1, 950.00
In stock
Canadian Solar 620W N-Type Bifacial Solar Panel
- High-output 620W solar panel for residential, commercial and industrial systems.
- Advanced N-Type TOPCon cell technology for improved energy yield and lower degradation.
- Bifacial double glass design generates additional power from reflected sunlight on the rear side.
- High module efficiency of up to 23.0% under standard test conditions.
- Excellent temperature coefficient of -0.29%/°C for improved performance in hot climates.
- Durable anodised aluminium frame with 2.0mm front and rear heat-strengthened glass.
- Suitable for hybrid solar systems, off-grid installations, commercial rooftops and ground-mounted solar arrays.
- 12-year enhanced product warranty and 30-year linear power performance warranty.
Canadian Solar 620W N-Type Bif...
R1, 950.00

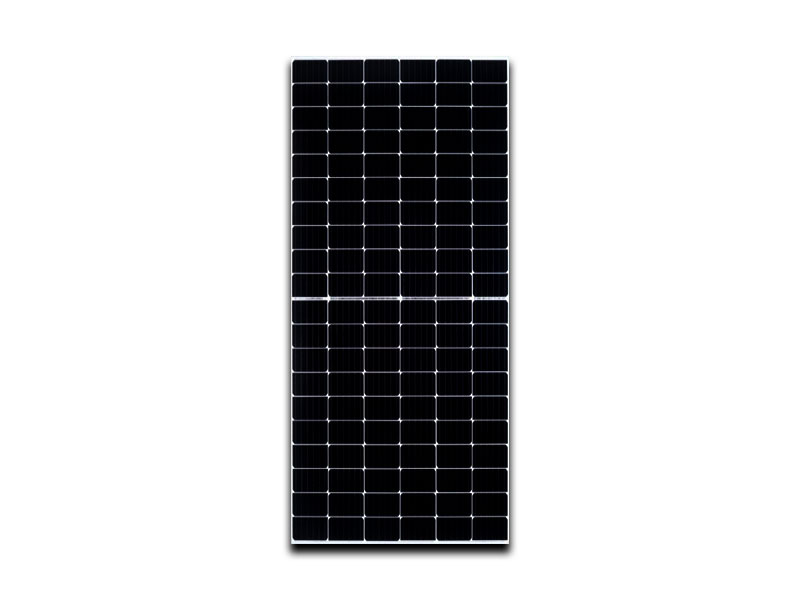

Canadian Solar 620W N-Type Bifacial Solar Panel
The Canadian Solar 620W N-Type Bifacial Solar Panel is a high-performance solar module designed for residential, commercial, industrial and agricultural solar installations. The panel combines advanced N-Type TOPCon cell technology with a durable bifacial double glass structure to deliver strong energy production, reduced degradation and improved long-term value.
With a rated output of 620W and module efficiency of up to 23.0%, this Canadian Solar panel is well suited to installations where maximum solar generation is required from the available roof or ground-mount space. The large-format design makes it especially suitable for commercial buildings, farms, warehouses, factories and large-scale solar projects.
Main Benefit
The main advantage of the Canadian Solar 620W Bifacial Solar Panel is its ability to generate power from both sides of the module. The front side captures direct sunlight, while the rear side can generate additional energy from reflected sunlight when the panel is installed above reflective surfaces or on suitable ground-mounted structures.
This bifacial technology can improve total solar production and provide a better return on investment when the mounting structure, tilt angle and surrounding surface are correctly designed.
N-Type TOPCon Solar Technology
The Canadian Solar 620W panel uses advanced N-Type TOPCon solar cells. N-Type solar technology offers improved long-term performance compared with older conventional panel designs, including lower power degradation, strong low-light performance and improved efficiency in demanding weather conditions.
The panel is also designed to reduce the effects of light-induced degradation and potential-induced degradation, helping the solar system maintain reliable output over its expected operating life.
Benefits
- High 620W rated solar output.
- Advanced N-Type TOPCon cell technology.
- Bifacial design for additional rear-side energy generation.
- Double glass construction for improved durability.
- Up to 23.0% module efficiency.
- Lower temperature coefficient for improved hot-weather performance.
- Reduced long-term power degradation.
- Improved energy yield and return on investment.
- Strong resistance to harsh environmental conditions.
- Suitable for large residential, commercial and industrial installations.
Performance in South African Conditions
The Canadian Solar 620W N-Type Bifacial Solar Panel has a temperature coefficient of -0.29%/°C, helping the panel maintain better output during hot weather. This is particularly valuable for solar installations in South Africa, where rooftop and ground-mounted solar panels are often exposed to high daytime temperatures.
The panel is tested for heavy snow loads of up to 5400Pa and wind loads of up to 2400Pa when installed according to the correct mounting requirements. The double glass construction also helps minimise the effect of micro-cracks and improves long-term mechanical strength.
Applications
- Residential hybrid solar systems.
- Commercial rooftop solar installations.
- Industrial solar systems.
- Agricultural and farming applications.
- Warehouses and factories.
- Ground-mounted solar systems.
- Solar farms and large-scale photovoltaic projects.
- Off-grid solar installations.
- Grid-tied solar systems.
- Battery backup and energy storage systems.
Technical Specifications
- Brand: Canadian Solar
- Model: CS6.2-66TB-620
- Product Range: TOPBiHiKu6
- Rated Power Output: 620W
- Solar Cell Technology: N-Type TOPCon
- Panel Type: Bifacial Double Glass Solar Panel
- Module Efficiency: 23.0%
- Maximum Power Voltage: 41.2V
- Maximum Power Current: 15.06A
- Open Circuit Voltage: 48.4V
- Short Circuit Current: 16.08A
- Power Tolerance: 0W to +10W
- Maximum System Voltage: 1500V
- Maximum Series Fuse Rating: 35A
- Power Bifaciality: 80% with tolerance of ±5%
- Temperature Coefficient: -0.29%/°C
- Operating Temperature: -40°C to +85°C
- Cell Arrangement: 132 cells
- Dimensions: 2382mm x 1134mm x 30mm
- Weight: 32.8kg
- Front Glass: 2.0mm heat-strengthened glass with anti-reflective coating
- Back Glass: 2.0mm heat-strengthened glass
- Frame: Anodised aluminium alloy
- Junction Box: IP68 rated with 3 bypass diodes
- Cable Size: 4.0mm²
- Connector Type: T6, MC4-EVO2 or MC4-EVO2A depending on stock batch
Warranty
The Canadian Solar 620W N-Type Bifacial Solar Panel includes a 12-year enhanced product warranty on materials and workmanship. It also includes a 30-year linear power performance warranty.
Power degradation is limited to no more than 1% during the first year, followed by no more than 0.4% annual degradation during the remaining warranty period. Warranty terms remain subject to the manufacturer’s installation, operating and warranty requirements.
Why Buy From JC Solar Panels
JC Solar Panels supplies reliable solar equipment for residential, commercial, industrial and agricultural installations across South Africa. Our team can assist with solar panel selection, inverter compatibility, battery storage requirements, mounting solutions and complete solar installation planning.
When selecting large-format solar panels such as the Canadian Solar 620W N-Type Bifacial Solar Panel, correct string design and inverter compatibility are important. JC Solar Panels can assist with selecting a suitable solar solution based on your available installation space and energy requirements.
Only logged in customers who have purchased this product may leave a review.
| Weight | 32 kg |
|---|---|
| Dimensions | 2382 × 1134 × 30 cm |
| Brand: | Canadian Solar |
| Product Type: | bifacial solar panel |
| Color: | Black |
| Weight: | 32 kg |
| Dimensions: | 2382 x 1134 x 30mm |
| Rated Power: | 620 W |
| VMPP: | 41.2 V |
| IMPP: | 15.06 A |
| Isc: | 16.08 A |
| Voc: | 48.4 V |
| Efficiency: | 23.0 % |
Payment security
Frequently Asked Questions
What is the output of the Canadian Solar 620W solar panel?
The Canadian Solar CS6.2-66TB-620 has a rated power output of 620W under standard test conditions. Actual daily energy production depends on sunlight conditions, panel orientation, tilt angle, shading and system design.
What does N-Type TOPCon technology mean?
N-Type TOPCon technology is an advanced solar cell design that provides improved efficiency, lower degradation and strong long-term performance. It is particularly suitable for customers looking for reliable solar generation over many years.
What is a bifacial solar panel?
A bifacial solar panel generates electricity from both the front and rear sides of the module. The rear side can produce additional power from sunlight reflected off the roof, ground or nearby surfaces.
How much extra power can the rear side generate?
The additional rear-side energy depends on the installation environment, mounting height, tilt angle and reflectivity of the surface below the panels. Ground-mounted systems and reflective surfaces generally provide better bifacial performance.
Can the Canadian Solar 620W panel be used on a residential property?
Yes. The panel can be used for residential solar installations where sufficient roof space and a suitable mounting structure are available. Due to its large physical size, the roof layout should be assessed before installation.
Is the Canadian Solar 620W panel suitable for commercial installations?
Yes. The high 620W output makes this panel well suited to warehouses, factories, farms, offices, shopping centres and other commercial properties where higher solar generation is required.
Can this solar panel be used with a hybrid inverter?
Yes. The panel can be used with compatible hybrid inverters, provided the solar string voltage and current remain within the inverter’s MPPT specifications. Correct string design is essential.
How many Canadian Solar 620W panels do I need?
The correct number of solar panels depends on the inverter size, MPPT voltage limits, battery storage capacity, available roof space and the customer’s electricity usage. A proper system design should be completed before installation.
Can these panels be used for an off-grid solar system?
Yes. The Canadian Solar 620W panel is suitable for off-grid solar systems when combined with a correctly sized inverter, battery bank, protection equipment and mounting structure.
What are the dimensions of the Canadian Solar 620W panel?
The panel measures 2382mm x 1134mm x 30mm and weighs approximately 32.8kg. The mounting structure must be suitable for the size and weight of the panel.
Does this panel perform well in hot weather?
Yes. The panel has a temperature coefficient of -0.29%/°C, helping it maintain better performance during hot conditions compared with solar panels that have higher temperature-related power losses.
Does the Canadian Solar 620W panel include a warranty?
Yes. The panel includes a 12-year enhanced product warranty on materials and workmanship and a 30-year linear power performance warranty, subject to the manufacturer’s terms and installation requirements.
Can this solar panel be installed on a ground-mounted structure?
Yes. Ground-mounted structures are often well suited to bifacial panels because the rear side can capture additional reflected sunlight when the mounting height, tilt angle and surface conditions are properly planned.
Is professional installation recommended?
Yes. Large-format solar panels should be installed by qualified professionals to ensure correct handling, mounting, electrical protection, string design and inverter compatibility.
