8 x Astronergy 610W Bifacial Solar Panels with Tile Roof Mounting Kit

8 x Astronergy 610W Bifacial Solar Panels with Tile Roof Mounting Kit

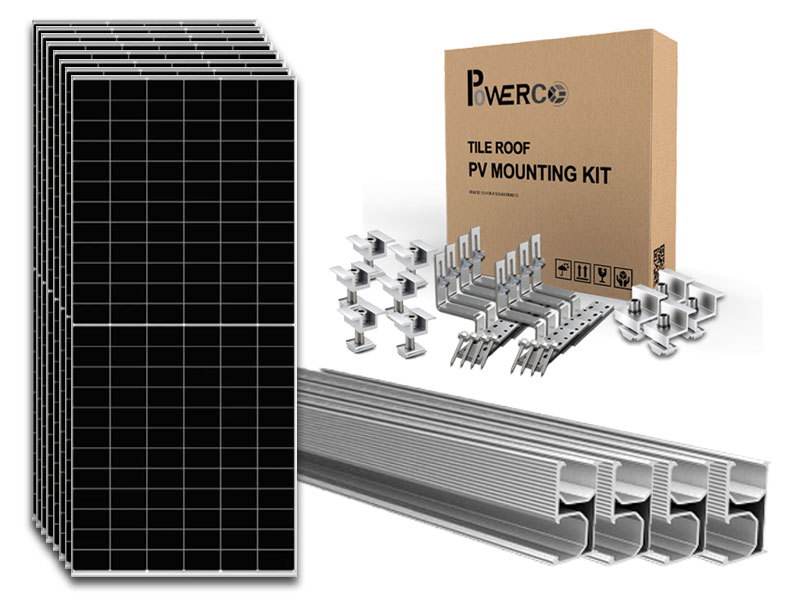

This 4.88kWp solar panel bundle combines eight high-output Astronergy Astro N5 610W bifacial N-Type solar panels with Powerco tile roof mounting components. It provides customers and installers with the panels, mounting rails, roof hooks and clamps required for a compatible eight-panel tiled-roof installation.

The eight solar panels provide a combined rated capacity of 4,880W, making this bundle suitable for compatible residential hybrid inverter systems, grid-tied solar installations, solar system upgrades and other applications requiring approximately 4.88kWp of PV capacity.

The mounting equipment is based on two rows of four portrait-mounted solar panels. Final suitability must be confirmed by the installer according to the roof structure, tile profile, rafter spacing, panel orientation, fixing points and wind conditions.

Products Included in the Bundle

• 8 x Astronergy Astro N5 610W bifacial N-Type solar panels
• 2 x Powerco four-panel tile roof mounting kits
• 4 x Powerco 4.7m aluminium solar mounting rails

Complete Tile Roof Mounting Components

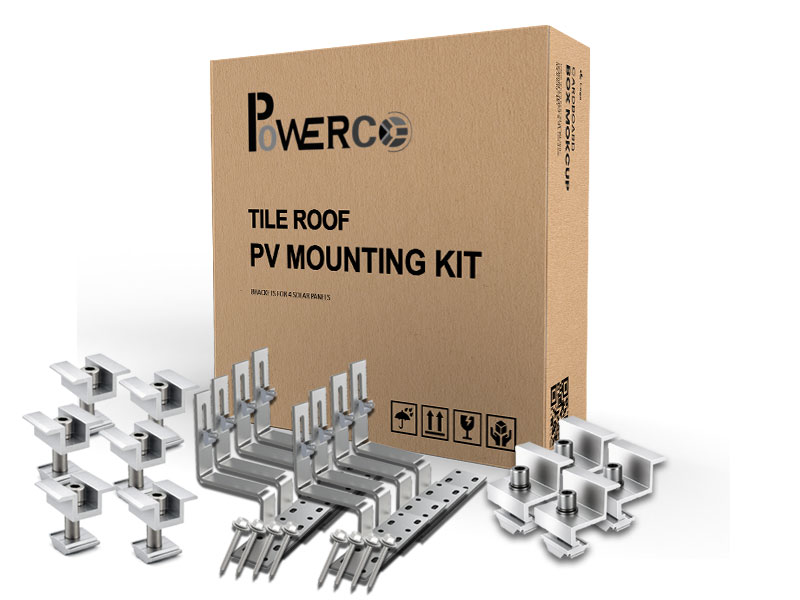

The two Powerco mounting kits provide the main roof hooks, clamps and mounting screws required for eight solar panels. Four 4.7m Powerco rails are included to support a typical layout consisting of two rows of four portrait-mounted panels.

• 20 x stainless steel tile roof hooks
• 8 x solar panel end clamps
• 12 x solar panel mid clamps
• 60 x mounting screws
• 4 x 4.7m aluminium solar mounting rails

4.88kWp Combined Solar Capacity

Eight 610W Astronergy solar panels provide 4,880W of combined rated PV capacity. This substantial solar array can help a compatible inverter generate more renewable energy during daylight hours, reduce grid consumption and recharge connected solar batteries when properly designed and installed.

Actual solar production depends on panel orientation, roof angle, shading, weather conditions, inverter efficiency, temperature, string configuration and installation quality.

Astronergy Astro N5 610W Panel Technology

The Astronergy Astro N5 uses N-Type TOPCon half-cut solar cell technology to provide high output, strong module efficiency and dependable long-term solar production. Its high 610W rating allows customers to obtain 4.88kWp of installed panel capacity from only eight modules.

• 610W rated output per solar panel
• 4,880W combined rated bundle capacity
• N-Type TOPCon half-cut cell technology
• Bifacial construction for potential rear-side energy gain
• Dual-glass construction with 2mm front and rear glass
• 21.8% module efficiency
• Positive power tolerance of 0W to +5W
• IP68-rated junction box
• 1,500V DC maximum system voltage
• 15-year product warranty
• 30-year linear power warranty

Bifacial Solar Energy Generation

The bifacial panel design allows the rear surface to capture reflected sunlight where installation conditions permit. Potential bifacial gain depends on roof colour, surface reflectivity, installation height, panel spacing, shading and mounting design. The front-facing rated output remains the primary basis for calculating the 4.88kWp array capacity.

Powerco Tile Roof Mounting Equipment

The included Powerco mounting components are designed to secure the solar panels to a compatible tiled roof. Stainless steel roof hooks provide fixing points to the underlying roof structure, while the aluminium rails and compatible clamps hold the solar panels securely in position.

The mounting rails may be cut or positioned by a competent installer where necessary. Any cuts, rail joins, fixing positions and panel spacing must be planned before installation.

Inverter Compatibility

The solar panels and mounting equipment are supplied without an inverter, battery, electrical protection or PV cabling. Before ordering, the installer must confirm that the eight-panel array is electrically compatible with the selected inverter or MPPT charge controller.

The installer must verify open-circuit voltage, operating voltage, string current, MPPT operating range, maximum input voltage and inverter input-current limits. The panels must not be connected to an inverter without an approved string design.

Installation and Electrical Components

Installation is not included. PV cable, solar connectors, earthing equipment, cable management, isolators, combiner boxes, surge protection, inverter equipment and compliance certification are also excluded unless specifically added to the quotation.

Solar panels and tile roof mounting equipment should be installed by a qualified solar installer familiar with structural fixing, roof waterproofing, PV string design, electrical protection and applicable installation requirements.

Important Mounting Layout Notice

The included mounting quantities are intended for a typical two-row layout with four portrait-mounted panels per row. Roof structures and installation layouts differ. Additional rails, rail joiners, roof hooks, clamps or other mounting components may be required if the panels are installed in landscape orientation, in a single row, across separate roof sections or in an alternative configuration.

Complete Solar Solutions Available

JC Solar Panels can provide compatible inverters, solar batteries, PV protection equipment, cables and professional installation as part of a complete solar solution. Customers can contact our sales team for assistance matching this 4.88kWp solar panel bundle to their property and energy requirements.
