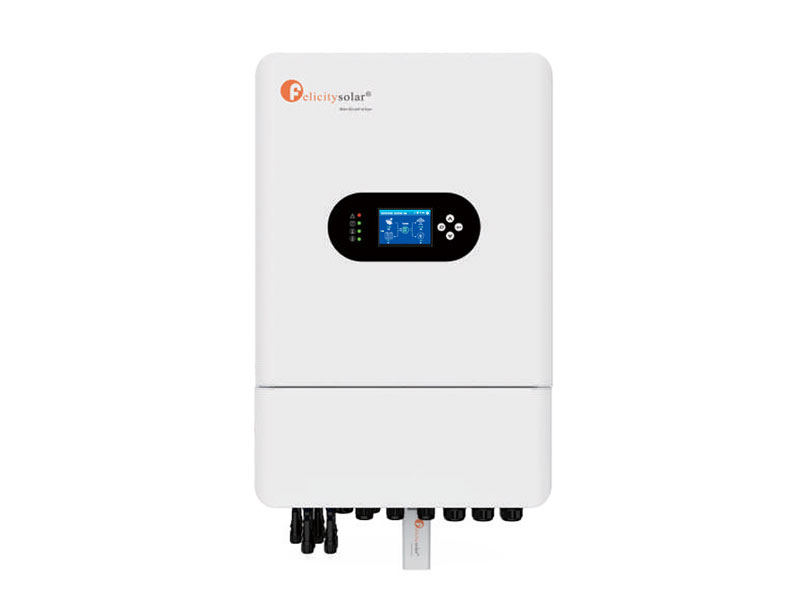

Felicity Solar 8kW Hybrid 48V Inverter

Felicity Solar 8kW Hybrid Inverter – Detailed Overview

The Felicity Solar 8kW Hybrid Inverter is a high-performance single-phase energy management solution designed for residential and light commercial applications. It intelligently integrates solar power generation, battery storage, grid supply and generator input into one reliable hybrid system, ensuring uninterrupted power and optimal energy utilisation.

Hybrid Energy Management System

This inverter operates as a true hybrid system, dynamically balancing power from solar panels, batteries and the utility grid. During daytime operation, solar energy is prioritised to supply connected loads while simultaneously charging the battery bank. When solar production is insufficient, the inverter seamlessly draws energy from batteries or the grid without interruption.

Load Shedding and Backup Power Capability

Engineered for unstable grid environments, the Felicity Solar 8kW Hybrid Inverter provides rapid switchover during grid failures and load shedding events. The dedicated backup output ensures that essential circuits remain powered, protecting household and business operations from downtime.

Battery Compatibility and Energy Storage

The inverter is designed for 48V battery systems and supports both lithium-ion and lead-acid battery technologies. Advanced battery communication via CAN and RS485 allows seamless integration with compatible lithium batteries, enabling accurate state-of-charge reporting, intelligent charging and enhanced battery protection.

Generator Integration Support

For extended outages or off-grid hybrid applications, the Felicity Solar 8kW Hybrid Inverter supports generator input. The system intelligently manages generator charging and load supply, reducing unnecessary runtime while maintaining battery levels and power availability.

Smart Monitoring and System Control

A built-in LCD display provides real-time insight into system performance, including solar generation, battery status, grid usage and load consumption. Optional WiFi monitoring enables remote access through a mobile app or web interface, allowing users and installers to monitor and adjust system settings conveniently.

System Protection and Reliability

The inverter incorporates multiple protection mechanisms including overload protection, short-circuit protection, over-temperature protection and battery management safeguards. These features ensure long-term reliability, safe operation and consistent performance under demanding conditions.

Applications and Use Cases

The Felicity Solar 8kW Hybrid Inverter is suitable for a wide range of applications, including residential solar installations, small businesses, offices and hybrid solar-generator systems. Its flexible design allows it to scale with growing energy demands while maintaining efficient power management.

Key Features

• 8kW single-phase hybrid inverter
• Supports solar, battery, grid and generator input
• Fast backup power switchover during outages
• 48V battery system compatibility
• CAN and RS485 communication for lithium batteries
• Integrated LCD display with optional WiFi monitoring
• High-efficiency energy conversion
• Designed for residential and light commercial use

Technical Specifications

• Rated Output Power: 8,000W
• Phase: Single-phase
• Battery Voltage: 48V
• Battery Types Supported: Lithium-ion and Lead-acid
• AC Output Voltage: 230V
• Monitoring: LCD display, optional WiFi module
• Installation Type: Wall-mounted
• Topology: Transformerless hybrid inverter

Installation and Compliance

The Felicity Solar 8kW Hybrid Inverter is designed for professional installation and integrates easily into compliant electrical and solar systems. Correct system sizing, battery selection and protective devices are essential to ensure optimal performance and long-term reliability.
