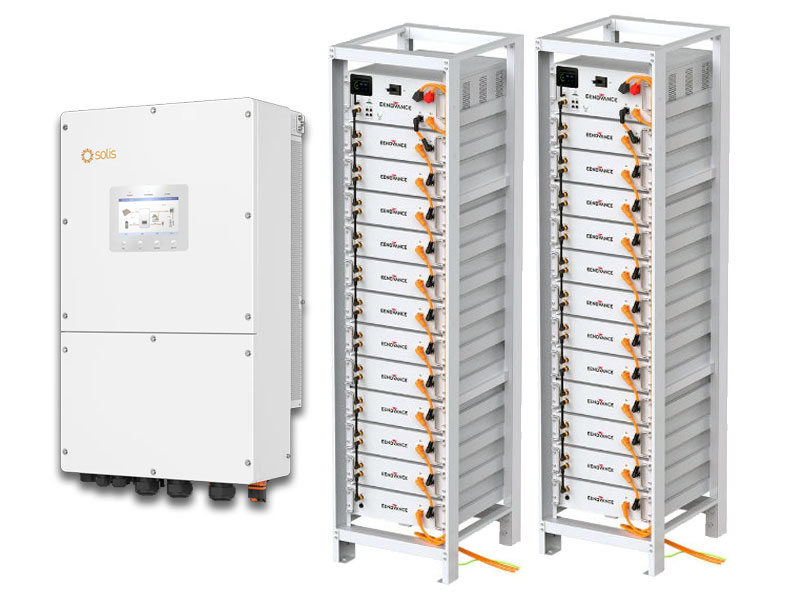

50kW Solis Three-Phase Inverter and 120kWh Eenovance HV Battery Bundle
The 50kW Solis Three-Phase Hybrid Inverter with 120kWh Eenovance High-Voltage Battery Bundle combines the Solis S6-EH3P50K-H commercial hybrid inverter with two Eenovance RT 5.12-H12 lithium iron phosphate battery systems. The two battery stacks provide 122.88kWh of combined usable storage capacity for commercial solar, energy-management and backup applications.
This commercial bundle is suitable for businesses, offices, retail properties, workshops, agricultural facilities and other three-phase sites that require substantial solar capacity and stored energy. The system supports solar generation, high-voltage battery storage, grid interaction, generator integration and backup power as part of a professionally engineered solution.
The advertised price is for the Solis inverter and two Eenovance battery systems only. Solar panels, mounting equipment, switchgear, electrical protection, cabling, installation, engineering and compliance certification are not included. JC Solar Panels can provide a complete commercial solar quotation based on the site’s load profile and operating requirements.
Products Included in the Bundle
- 1 x Solis S6-EH3P50K-H 50kW three-phase high-voltage hybrid inverter
- 2 x Eenovance RT 5.12-H12 61.44kWh high-voltage LFP battery systems
Solis S6-EH3P50K-H Inverter Features
- 50kW rated three-phase AC output power and 50kVA maximum apparent output power
- Recommended maximum PV array size of 100kW and maximum usable PV input power of 96kW
- 1,000V maximum PV input voltage and 150V to 850V MPPT operating range
- Four independent MPPT inputs supporting up to eight PV strings
- Maximum PV input current of 4 × 40A
- 150V to 800V battery voltage range
- Maximum battery charging and discharging power of 55kW
- Two independently controlled battery inputs with up to 70A charge and discharge current per input
- 50kW rated backup output with up to 1.6 times rated power for two seconds
- Backup changeover time of less than 10 milliseconds
- Compatible parallel operation of up to six inverter units
- Generator connectivity with automatic control and peak-shaving support
- Maximum inverter efficiency of 97.8%
- DC Type II and AC Type II surge protection
- Integrated DC arc-fault protection, subject to activation
- IP66 ingress-protection rating
- CAN, RS485 and Ethernet communication with optional Wi-Fi, cellular and LAN connectivity
122.88kWh Eenovance High-Voltage Battery Storage
The two Eenovance RT 5.12-H12 commercial high-voltage battery systems contain a combined total of twenty-four modular 5.12kWh lithium iron phosphate battery packs. Together they provide 122.88kWh of usable energy under the manufacturer’s specified test conditions.
- 122.88kWh combined usable battery energy
- Twenty-four 5.12kWh battery modules in two stacks
- Lithium iron phosphate cell technology
- 614.4V nominal voltage per battery stack
- 537.6V to 673.92V operating voltage range per battery stack
- 100A maximum charging and discharging current per battery stack
- SOC status indicator, LED indicator and LCD display
- CAN, RS485 and RS232 communication
- Remote upgrades, energy-management functionality and local real-time monitoring
- Two floor-standing commercial battery cabinets
- IP20 ingress-protection rating for an appropriate protected installation area
- Specified cycle life of 6,000 cycles or ten years at 80% depth of discharge under the manufacturer’s test conditions
- Compatible platform support for up to four battery stacks in parallel
Commercial Solar and Backup Capability
The inverter provides 50kW of rated backup output and supports a short-duration output of up to 1.6 times rated power for two seconds. Actual backup duration depends on site demand, battery state of charge, configured reserve capacity, system settings and operating conditions. A professional load assessment is required to determine which circuits and equipment can be supported during a grid failure.
Large Solar-Array Capacity
The Solis inverter supports a recommended maximum PV array size of 100kW and maximum usable PV input power of 96kW. Its four MPPT inputs and eight-string capability provide flexibility for commercial roofs, carports, ground-mounted arrays and sites with multiple panel orientations.
Solar panels are not included. The final array must be engineered according to the selected module specifications, string voltages, input-current limits, site conditions and applicable electrical requirements.
Generator Integration and Peak Shaving
The inverter supports compatible generator connectivity with automatic control and peak-shaving functionality in self-use and generator modes. These features allow an appropriately designed system to manage grid demand, solar production, stored energy and generator operation more effectively.
Expandable Commercial Platform
The Solis inverter supports compatible parallel operation of up to six units, while the Eenovance high-voltage platform supports compatible expansion of up to four battery stacks. This bundle uses two battery stacks. Any expansion must be professionally engineered to confirm voltage, current, communication, protection and manufacturer requirements.
Complete Commercial Solar Solutions Available
JC Solar Panels can provide compatible solar panels, mounting structures, switchgear, protection equipment, cabling, engineering and professional installation as part of a complete commercial solar solution. Customers can request a customised proposal based on interval consumption data, maximum demand, operating hours and backup requirements.
Professional Commercial Installation Required
Installation is not included in the bundle price. This high-voltage commercial system must only be designed, installed, configured and commissioned by suitably qualified professionals. Site-specific engineering, electrical protection, grid requirements and compliance certification must be addressed before commissioning.
Limited-Time Commercial Bundle
This Solis and Eenovance commercial combination is available as a limited-time promotional bundle while stocks last. Contact JC Solar Panels to confirm availability or request a complete commercial solar-system quotation.
