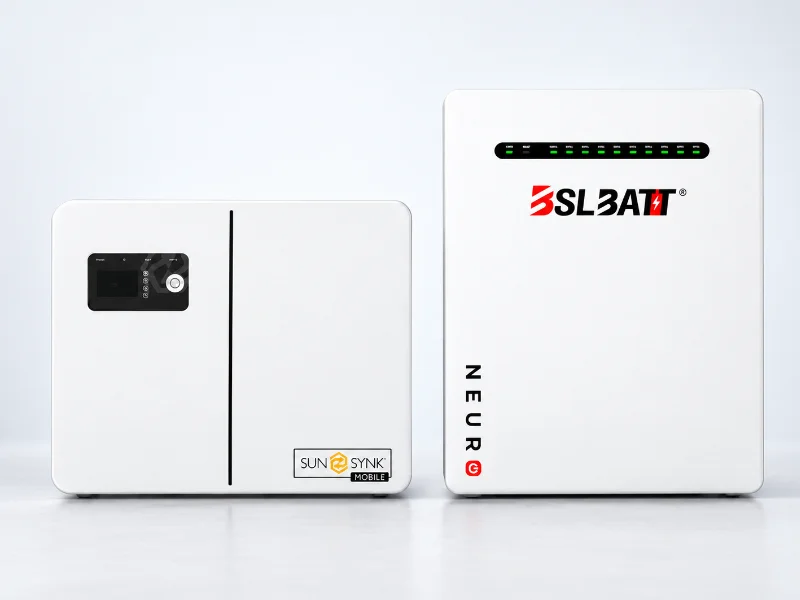

SunSynk 6kW Lynks Hybrid Inverter + BSL Li-Pro 5.12kWh Lithium Battery Combo

The SunSynk 6kW Lynks Hybrid Inverter paired with the BSL Li-Pro 5.12kWh Lithium Battery delivers a complete, efficient, and future-proof energy storage solution for homes and small businesses. Whether you’re looking to cut electricity bills, protect against load-shedding, or go off-grid, this combo offers premium performance, reliability, and scalability.

SunSynk 6kW Lynks Hybrid Inverter – Key Features

• Hybrid Operation: Seamlessly integrates solar, battery, and grid power.

• 6kW Output: Powers essential and high-demand appliances.

• High PV Input: Supports multiple MPPTs for optimal solar harvest.

• Fast Switching: <10ms UPS transfer time for uninterrupted power.

• Smart Management: Programmable charge/discharge times, time-of-use settings, and remote monitoring.

• Multiple Protection Systems: Overload, short-circuit, surge, and temperature protection.

• Connectivity: Wi-Fi/LAN stick included for app and cloud monitoring.

BSL Li-Pro 5.12kWh Lithium Battery – Key Features

• Capacity: 5.12kWh usable (4.6kWh @ 90% DoD).

• Long Life: 6000+ cycles @ 90% DoD – over 15 years’ design life.

• Scalability: Parallel up to 32 units for massive storage capacity.

• IP65 Protection: Weather-resistant for indoor/outdoor installation.

• Compact Design: 660×450×145mm wall-mounted – saves space.

• High Power Output: 100A max discharge; 150A peak for surge loads.

• Smart Communication: RS232, RS485, CAN, with optional Wi-Fi/Bluetooth.

• Safe Chemistry: LiFePO₄ cells for maximum safety and stability.

Why Choose This Combo?

• Perfect Match: Battery and inverter are fully compatible for seamless performance.

• Expandable: Grow your system with more panels or batteries as your needs increase.

• Load Shedding Ready: Instant switchover ensures no interruption to your power.

• Energy Savings: Store excess solar for night-time use and reduce grid reliance.

Technical Specifications

Inverter: SunSynk Lynks 6kW Hybrid

• Rated Power: 6kW

• Phase: Single Phase

• Battery Voltage: 48V DC

• PV Input: Multiple MPPT, high voltage range

• Transfer Time: <10ms

• Monitoring: Wi-Fi/LAN, app, and web portal

Battery: BSL Li-Pro 5.12kWh

• Nominal Voltage: 51.2V DC

• Nominal Capacity: 5.12kWh (usable 4.6kWh)

• Cycle Life: 6000+ @ 90% DoD

• Parallel Connections: Up to 32

• Dimensions: 660×450×145mm

• Weight: 50kg

• Protection Rating: IP65
