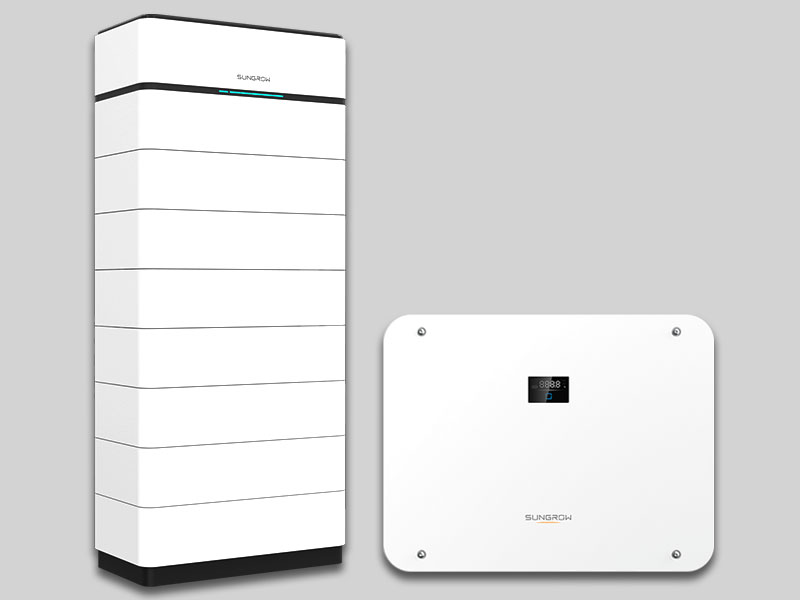

25kW Sungrow Three-Phase Hybrid Inverter with 40kWh SBH400 Battery Bundle

25kW Sungrow Hybrid Inverter and 40kWh SBH400 Battery Bundle

The 25kW Sungrow Hybrid Inverter with 40kWh SBH400 Battery Bundle combines the Sungrow SH25T three-phase hybrid inverter with the modular Sungrow SBH400 high-voltage lithium iron phosphate battery system. This limited-time bundle provides 25kW of inverter output and 40kWh of usable battery storage for residential solar, energy storage and backup power applications.

The higher 25kW inverter output makes this bundle suitable for homes with larger electrical loads, while the 40kWh battery stores energy for use at night, during periods of limited solar production or when grid electricity is unavailable. The Sungrow hybrid platform integrates solar generation, battery storage, grid supply and backup power into one intelligently managed energy system.

The advertised price is for the Sungrow inverter and battery bundle only. Solar panels, mounting equipment, electrical protection, cabling, installation and certification are not included. Customers who require solar panels or a complete professionally installed solution can contact the JC Solar Panels sales team for a customised quotation.

Products Included in the Bundle

• 1 x Sungrow SH25T 25kW three-phase hybrid inverter
• 1 x Sungrow SBH400 40kWh high-voltage LFP battery system

Sungrow SH25T Hybrid Inverter Features

The Sungrow SH25T is a powerful three-phase hybrid inverter designed for new solar installations and compatible retrofit applications. It provides three independent MPPT inputs, substantial solar-panel capacity and high-speed battery charging and discharging for improved solar-energy utilisation.

• 25,000W rated AC output power
• Recommended maximum PV input power of 50,000Wp
• 1,000V maximum PV input voltage
• 150V to 950V MPPT operating voltage range
• Three independent MPPT solar inputs
• Maximum PV input current of 80A
• Maximum efficiency of 98.2%
• Maximum battery charging power of 30,000W and discharging power of 25,000W
• Less than 10ms transition time to emergency backup mode
• 25,000W rated off-grid output power
• Peak backup output of 36,500VA for 10 seconds
• DC Type II and AC Type II surge protection
• IP65 degree of protection
• RS485, WLAN, Ethernet and CAN communication
• Sungrow iSolarCloud monitoring support

40kWh Sungrow SBH400 Battery Storage

The Sungrow SBH400 is a modular high-voltage battery system constructed from eight 5kWh lithium iron phosphate battery modules. It provides 40kWh of usable energy storage under the manufacturer’s specified test conditions and is designed for reliable daily cycling, solar-energy storage and backup power applications.

• 40kWh usable battery capacity
• Eight 5kWh modular battery units
• Lithium iron phosphate prismatic cell technology
• 563.2V nominal battery voltage
• 475.2V to 642.4V operating voltage range
• 28.16kW rated DC power
• Maximum 100% depth of discharge, subject to system settings
• Maximum continuous charging and discharging current of 50A
• Integrated DC circuit breaker and battery protection
• IP55 degree of protection
• Suitable for indoor or outdoor installation according to Sungrow requirements
• Ten-year conditional manufacturer warranty, subject to Sungrow warranty terms

Powerful Residential Backup Performance

The Sungrow SH25T can transition to emergency backup operation in less than 10 milliseconds when correctly installed and configured. The inverter provides up to 25kW of rated off-grid output and can temporarily deliver peak output of up to 36,500VA for 10 seconds. Actual performance depends on available battery charge, connected loads, system settings and operating conditions.

Three MPPT Inputs for Flexible Solar Design

The SH25T provides three independent MPPT solar inputs and supports recommended PV input capacity of up to 50,000Wp. Solar panels are not included. The final panel configuration must be designed according to the inverter limits, selected panel specifications, available roof space and applicable installation requirements.

Smart Monitoring with Sungrow iSolarCloud

Once correctly connected and commissioned, customers can use Sungrow iSolarCloud to monitor solar production, battery operation, energy consumption and overall system performance.

Expandable Modular Battery Platform

The Sungrow SBH battery platform has a modular design that allows storage capacity to be expanded within a compatible system configuration. Battery expansion must be assessed and completed by an accredited Sungrow installer.

Solar Panels and Complete Installation Available

JC Solar Panels can provide compatible solar panels, mounting equipment, protection boxes, cabling and professional installation as part of a complete solar solution. Customers can contact our sales team for a customised quotation.

Installation Requirements

Installation is not included in the advertised bundle price. This high-voltage inverter and battery system must only be designed, installed, configured and commissioned by a suitably qualified and accredited Sungrow installer.

Free Delivery in Selected Areas

Free delivery is available for this Sungrow bundle in Cape Town, Gauteng, Bloemfontein, Nelspruit, Durban and George, subject to promotional stock availability and confirmation of the delivery address.

Limited-Time Sungrow Bundle Special

This inverter and battery combination is available as a limited-time Sungrow bundle special while promotional stocks last. Contact JC Solar Panels to confirm availability, arrange delivery or request a complete solar and installation quotation.
