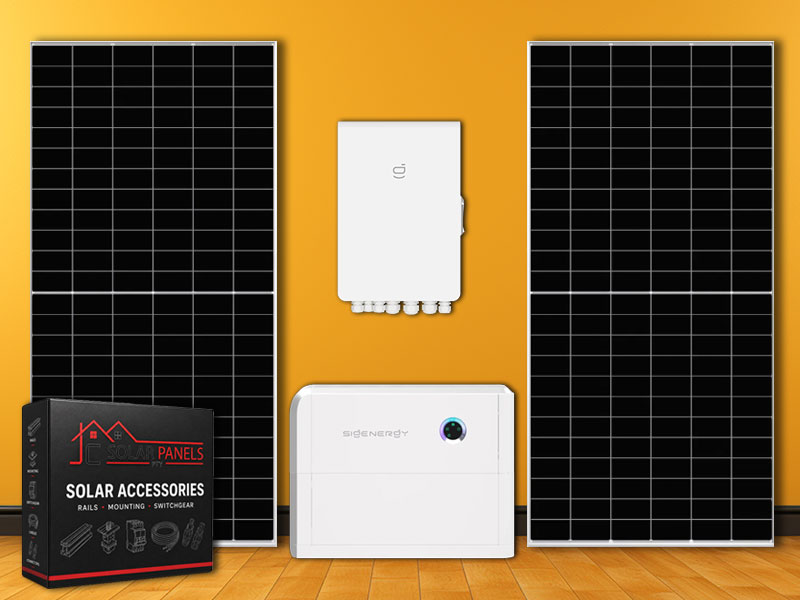

6kW SigenStor Fully Installed Solar System with 9kWh Battery & 10 x 660W AIKO Panels

6kW SigenStor Fully Installed Solar System with 9kWh Battery and 10 x 660W AIKO Solar Panels

This fully installed SigenStor solar system combines a 6kW single-phase Sigen Energy Controller, a 9.04kWh SigenStor battery, a Sigen Energy Gateway and ten high-output 660W AIKO N-Type ABC solar panels. The complete 6.6kWp solar array is supported by the listed protection equipment, cabling, connectors, earthing components and tile-roof mounting structure.

The system is designed for homeowners and suitable small businesses that want intelligent solar generation, battery storage and dependable backup power from a premium integrated energy platform. It will be installed and commissioned by an approved Sigenergy solar installer operating under JC Solar Panels.

JC Solar Panels supplies Sigenergy equipment only as part of a fully installed solution. Sigenergy components from this package are not supplied separately.

Complete System Included

• 1 x SigenStor EC 6.0 SP 6kW single-phase Energy Controller
• 1 x SigenStor BAT 10.0 battery with 9.04kWh total and 8.76kWh usable energy
• 1 x compatible Sigen Energy Gateway
• 10 x AIKO 660W N-Type ABC solar panels
• 6.6kWp combined rated solar panel capacity
• Required listed switchgear, cables, connectors, earthing and tile-roof mounting equipment
• Delivery of the listed components to the installation site
• Professional installation and commissioning
• Certificate of Compliance for the installed solar components

SigenStor 6kW Energy Controller

The SigenStor EC 6.0 SP integrates solar conversion, battery control and intelligent energy management into the SigenStor platform. It delivers 6,000W of nominal single-phase output and supports up to 12,000W of PV input, providing capacity for the included 6.6kWp solar array and suitable future PV expansion when professionally designed.

• 6,000W nominal on-grid output power
• 6,600VA maximum apparent output power
• 27.3A nominal and 30A maximum output current
• 9,000W peak backup output for ten seconds
• 220V, 230V or 240V nominal single-phase output
• Up to 12,000W maximum PV input power
• Two independent MPPT trackers with one PV string per MPPT
• 600V maximum DC input voltage
• 50V to 550V MPPT operating range
• 16A maximum input current per MPPT
• 20A maximum short-circuit current per MPPT
• 98% maximum efficiency
• IP66 ingress-protection rating
• WLAN, Fast Ethernet and RS485 communication
• Natural-convection cooling

9.04kWh SigenStor Battery Storage

The included SigenStor BAT 10.0 uses LiFePO4 battery technology with premium 314Ah cells. It provides 9.04kWh of total stored energy and 8.76kWh of usable energy under the manufacturer’s stated test conditions.

• 9.04kWh total battery capacity
• 8.76kWh usable battery capacity
• 314Ah LiFePO4 cells
• 100% specified depth of discharge
• 4,600W maximum charge and discharge power
• 6,900W peak charge and discharge power for ten seconds
• Manufacturer-stated cell cycle life of 10,000 cycles under specified test conditions
• Integrated battery optimiser for flexible compatible expansion
• IP66 ingress-protection rating
• Natural-convection cooling
• Floor-standing or wall-mounted installation capability

Sigen Energy Gateway and Backup Operation

The included compatible Sigen Energy Gateway works with the Sigen Energy Controller and SigenStor battery to manage grid connection and backup operation. The manufacturer specifies a zero-millisecond backup disruption time when the required SigenStor components are used together and the system operates within the stated test conditions.

The circuits supported during an outage will depend on the connected loads, battery state of charge, solar production, system settings and final electrical design. High-consumption appliances must be assessed before being connected to the backed-up supply.

6.6kWp AIKO N-Type ABC Solar Panel Array

Ten AIKO Comet 3N72 AIKO-A660-MDE72Mw modules provide 6,600W of combined rated solar capacity. The panels use N-Type ABC cell technology with partial-shading optimisation, strong temperature performance and a high module efficiency of 24.4%, helping the system generate more power from the available roof area.

• 660W rated power per panel
• 6.6kWp combined rated solar capacity
• 24.4% module efficiency
• N-Type ABC cell technology
• 54.20V open-circuit voltage per panel
• 45.50V maximum-power voltage per panel
• 15.22A short-circuit current per panel
• 14.51A maximum-power current per panel
• 0% to +3% positive power tolerance
• 1,500V DC maximum system voltage
• 25A maximum series-fuse rating
• IP68 junction box with three bypass diodes
• 3.2mm tempered front glass with high-weather-resistance backsheet
• Maximum static loading of 5,400Pa front and 2,400Pa rear
• 15-year product warranty, extendable to 25 years subject to manufacturer terms
• 30-year linear performance warranty
• First-year degradation of no more than 1% and annual degradation from years two to thirty of no more than 0.35%

Electrical and Installation Materials

• 100m red PV cable
• 100m black PV cable
• 1 x pack containing five male and female MC4 connector pairs
• Eco double trunking required for the standard installation scope
• 1 x 2-in/2-out 1,000V DC PV combiner box
• 20m of 16mm² bare copper earth wire
• 2 x M12 x 1.2m threaded earth spikes
• 15m of 10mm² four-core trailing cable
• 20m of 10mm² green and yellow earth wire

Tile-Roof Solar Mounting Equipment

• 8 x 30mm aluminium solar mid clamps
• 16 x 30mm aluminium solar end clamps
• 3 x solar rail splice connectors
• 20 x stainless-steel tile roof hooks
• 5 x 4.7m aluminium solar mounting rails

The standard mounting equipment is intended for a suitable tiled roof. Customers must confirm whether the property has a tile, IBR, corrugated, Klip-Lok or other roof type. JC Solar Panels will adjust the mounting structure and quotation where the supplied tile-roof components are not suitable. Ground-mounted arrays require a customised mounting design and quotation.

Professional Sigenergy Installation

The system will be installed, configured and commissioned by an approved Sigenergy solar installer operating under JC Solar Panels. The installation includes the labour required to install the listed system components within the standard scope, connect the applicable solar equipment and complete functional system testing.

A Certificate of Compliance is included for the newly installed solar components and associated electrical work, subject to the completed installation meeting the applicable compliance requirements.

Standard Installation Scope

The standard installation applies to a suitable single-storey building with reasonable access, an acceptable roof structure, standard cable routes and an electrical installation that can accommodate the new solar system without extensive alterations.

Multiple-storey buildings, difficult roof access, unusually long cable routes, roof repairs, structural work, civil work, trenching, scaffolding, specialised access equipment, main distribution-board replacements, utility upgrades, additional sub-distribution boards and electrical repairs outside the stated solar installation scope are excluded and require a separate quotation.

Installation Areas

Installation is available in Johannesburg, Pretoria, the Western Cape, Rustenburg, Bloemfontein and Durban, subject to installer availability and site confirmation. Customers in other areas can request a formal quotation for delivery, travelling and installation.

Site Verification and Custom Quotations

Final suitability depends on the property’s electrical supply, load requirements, distribution board, roof condition, roof orientation, shading, cable routes and mounting requirements. Customers should provide their installation address, roof type, electricity usage and backup requirements so that JC Solar Panels can confirm the standard package or prepare a customised solution.
