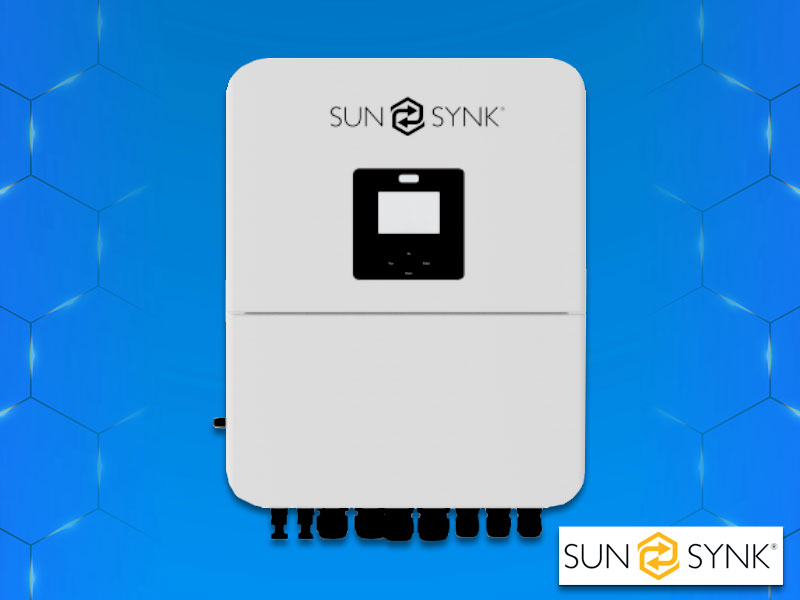

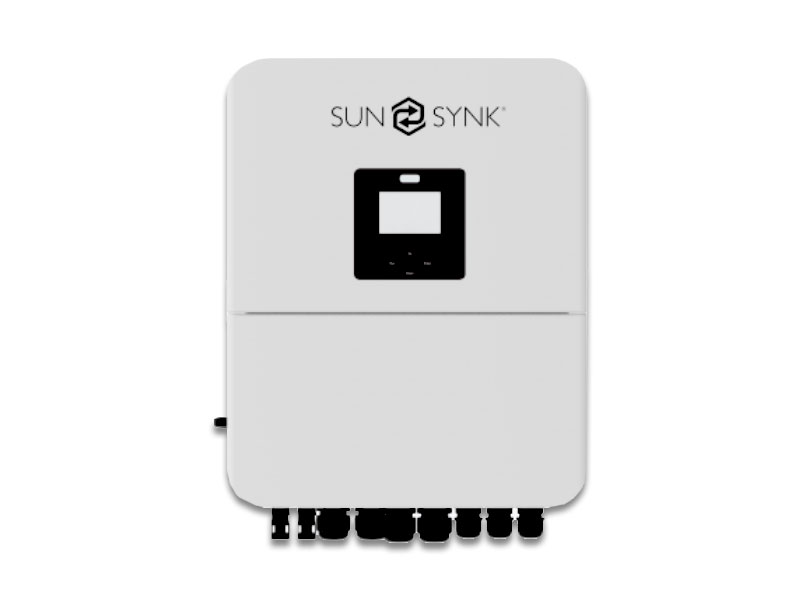

Sunsynk 5kw Hybrid Compact Inverter

Sunsynk 5kW Hybrid Compact Inverter – SG04LP1-EU-SM2 LV

The Sunsynk 5kW Hybrid Compact Inverter is a new-generation hybrid inverter designed to give you full control over how you use and store energy at home or at your business. It can combine solar, grid power, batteries and even a generator or wind turbine, allowing you to reduce your electricity bill while keeping the lights on during load shedding.¹

Smart hybrid power for South African conditions

• 5kW continuous output – enough to run essentials such as lights, plugs, TVs, computers, fridges, pumps and other key appliances.
• 48V battery compatible (40–60V) – works with most popular lithium and lead-acid battery banks with an intelligent 3-stage charger and Li-ion BMS self-adaptation.²
• Up to 6.5kW solar PV input – connect a generous PV array to maximise daytime solar production.¹
• Dual MPPT trackers – two independent MPPTs (with 2 strings) help optimise generation when panels are installed on different roof orientations.^1,3
• High charge / discharge current – up to 120A battery charging and discharging for fast battery response and efficient energy use.^2,4
• Fast transfer time (≤10 ms) – seamless switchover from grid to backup to protect sensitive electronics during load shedding.¹

Compact, neat & installer-friendly

• Compact enclosure – space-saving design with a lightweight 5kW “Compact” chassis that is easy to mount and ideal where wall space is limited.⁵
• Natural cooling & IP65 rating – fan-less operation for quiet running and fewer moving parts, with IP65 protection for indoor or outdoor installation in sheltered locations.^1,5
• Clean front layout – colour LCD display with simple icons showing power flow, battery state of charge, load status and grid interaction.

Flexible operating modes

The Sunsynk 5kW Compact can be configured to match your energy strategy:

• Backup / UPS mode – use the inverter with batteries only for pure backup and add solar panels later.
• Grid-tied with solar only – start with PV panels and the inverter, then add batteries when you are ready.
• Full hybrid system – combine solar, batteries and the grid for maximum saving and reliability.
• Off-grid operation – run from solar and batteries with generator support in remote areas.^1,7

Advanced control & monitoring

• Wi-Fi / app monitoring – monitor your system in real time via the Sunsynk app or web portal (Wi-Fi dongle on Compact/Ecco models).^1,7
• 6 time-of-use periods – schedule how the battery charges and discharges during the day (for example charge from solar, discharge in the evening and during load shedding).¹
• Export limiting – set the system to zero-export if required, or allow controlled export where permissible.
• Multiple communication ports – RS485 / CAN interfaces for BMS communication and external metering.^2,13

Safety & protection

• Overload, short-circuit and over-temperature protection built in.
• Advanced battery management to protect your battery bank.
• Integrated AC and DC protections as per manufacturer specifications.^2,16

Key Technical Highlights

• Rated AC power: 5,000W single-phase
• Battery voltage: 48V nominal (40–60V range)
• Maximum PV input power: up to 6,500W
• MPPT voltage range: approx. 125–425V DC
• Number of MPPTs / strings: 2 MPPTs, 2 strings
• Maximum efficiency: up to ±97.5–97.6%
• Ingress protection: IP65 – suitable for indoor or outdoor use
• Cooling: natural cooling (compact, fan-less design)
• Communication: Wi-Fi (dongle), RS485, CAN (battery / meter)

Ideal applications

• Residential homes needing strong backup and monthly bill savings.
• Small offices, shops and home-based businesses.
• Remote locations with weak grid or generator supply.
• Scalable systems – multiple Sunsynk / Deye-platform units can work in parallel for larger installations (subject to design).

What’s included

• 1 × Sunsynk 5kW Hybrid Compact Inverter – SG04LP1-EU-SM2 LV
• Built-in AC / DC connection terminals
• Wi-Fi / monitoring dongle (where supplied by distributor)
• User manual & installation guide

Important notes

• This product must be installed by a suitably qualified and accredited installer to maintain the manufacturer warranty and to comply with local regulations.
• Battery bank, solar panels, protection devices, cabling and mounting structures are not included and can be quoted separately.
• Performance and design must be confirmed against your site conditions and load profile.

For custom solar and backup solutions using the Sunsynk 5kW Hybrid Compact Inverter, please contact JC Solar Panels for professional advice and system design.
