Sunsynk 3.6kw Powerlynk X system
Original price was: R31,623.68.R27,682.94Current price is: R27,682.94. Incl. VAT
29 people are viewing this product right now

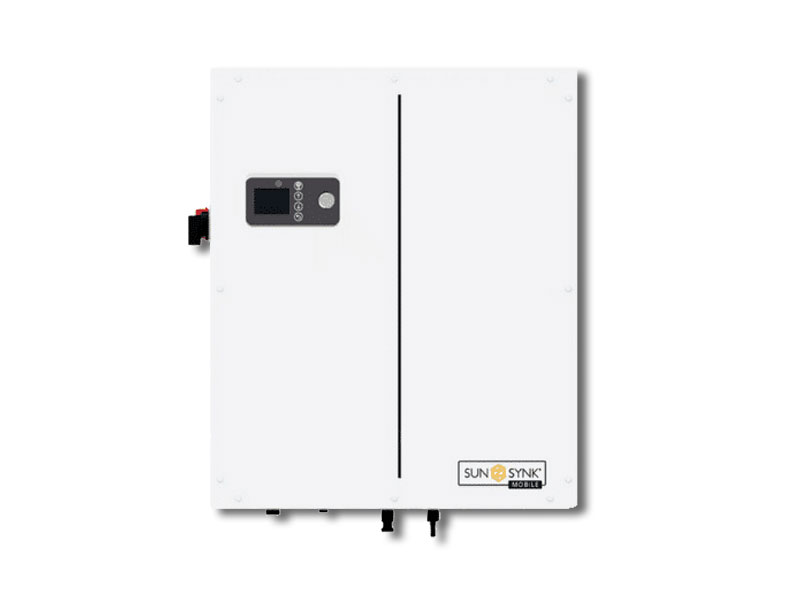

Sunsynk Powerbank X 3.6kW Inverter / 3.84kWh Battery Pack
Sunsynk 3.6kw all-in-one Powerlynk X system
All-in-one, plug-&-play, and expandable.
Only available to South Africa
Sunsynk 3.6kw Powerlynk X syst...
Original price was: R31,623.68.R27,682.94Current price is: R27,682.94. Incl. VAT
Need Help?
062 881 5615
info@jcsolarpanles.co.za
Sunsynk 3.6kw Powerlynk X system
“Simple but elegant”
A fully plug-and-play system that simplifies and speeds up the installation, allowing for more efficient planning and implementation on large volume rollouts in new house builds or retrofits.
The Powerlynk X houses a 3.6kW hybrid inverter, 3.6kWh LiFePO4 battery and a 4.5kW MPPT whereas the Powerlynk S houses a 2.5kW Hybrid Inverter, 2kWh Lithium-ion Battery and 3kW MPPT. Both can be paralleled to meet most energy requirements.
Unlock the full potential with our dedicated Sunsynk Connect platform which enables full control, visibility, and access to the system, making site-specific customisation simple.
The Powerlynk comes complete with everything you need to install this cutting-edge storage solution. In-built connection points on the bottom of the Powerlynk give access to the Load, Grid, CT, and Wi-Fi Data logger ports, making it a true “plug and play” system, the simple wall mount bracket makes for easy installation. From the pre-set factory settings to the in-built connection ports, the Powerlynk has been designed with convenience and hassle-free installation in mind.
| Model
Battery Input Parameters |
PowerLynk X |
| Supported Battery Type | LiFeP04 |
| Nominal Battery Voltage (V) | 51.2 |
| Battery Input Voltage Range (V) | 43.2-57.6 |
| Max. Charge Voltage (V) | 60 (Configurable) |
| Max. Charge Current (A) | 60 (Configurable) |
| Max. Discharge Current (A) | 80 (Configurable) |
| Battery Capacity (Wh) | 3840 |
| PV String Input Parameters | |
| Max. DC Input Power (W) | 4500 |
| Max. DC Input Voltage (V) | 500 |
| MP PT Voltage Range (V) | 120-450 |
| Start-Up Voltage (V) | 150 |
| Max. Input Current (A) | 12 x 2 |
| AC Output Parameters (Back-Up) (Feed to essential loads) | |
| Max. Output Power (W) | 3600 |
| Max. Output Apparent Power (VA) | 3600 |
| Peak Output Apparent Power (VA) | 7200 |
| Max. Output Current (A) | 16 |
| Nominal Output Voltage (Vac) | 230 |
| Nominal Output Frequency (Hz) | 50 |
| Max. Bypass Current (A) | 40 |
| Shift Time (Bypass and Inverter) (ms) | 10 |
| Output T HD (Resistor Load) | 3% |
| AC Input Parameter (On-Grid) | |
| Max. Input Power (W) | 3600 |
| Max. Output Power (W) (Feed to Home Load) | 3600 |
| Max. Apparent Input Power (VA) | 3600 |
| Max. Apparent Output Power (VA) | 3600 |
| Nominal Input / Output Voltage (Vac) | 230 |
| Nominal Input / Output Frequency (Hz) | 50 |
| Max. Bypass Current (A) | 40 |
| Shift Time (Bypass and Inverter) (ms) | 10 |
| Dimensions | |
| Size (H x L x W mm) | 700.6 x 543.6 x 182.2 |
| Net Weight | 51.7kg |
| Efficiency | |
| Max. Efficiency | 97.6% |
| Max. Battery to Load Efficiency | 94.0% |
| Europe Efficiency | 97.0% |
| MPPT Efficiency | 99.9% |
| Integrated | Battery Over-Charge Protection, Battery Low Voltage Protection, Over-Temperature Protection,
Output Short-Circuit Protection, Output Over- Voltage Protection, Output Overload Protection |
Powerlynk X Technical Specification
This Grid support interactive inverter complies with VDE 0126-1-1 :2013, IEC/EN 62109-1 :2010, IEC/EN 62109-22011, NRS 097-2-1 :2017
