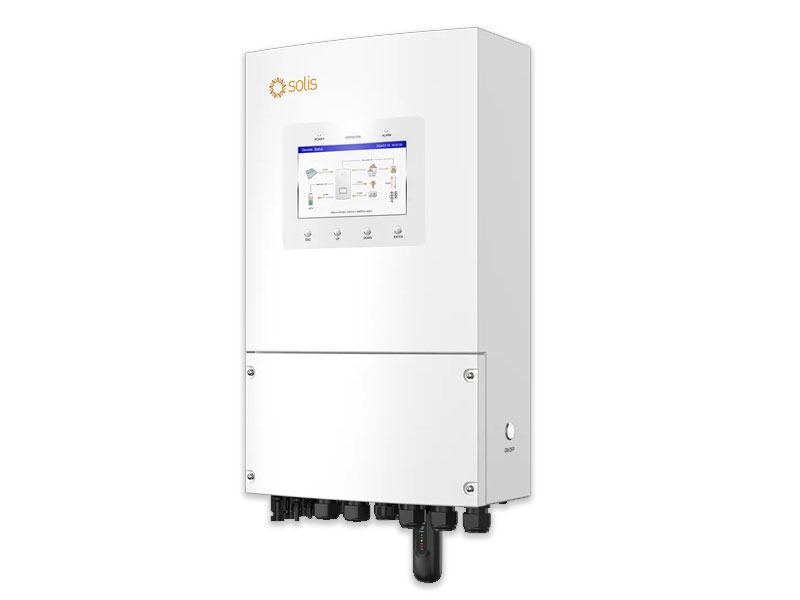

Solis S6 5kW Single-Phase Low-Voltage Hybrid Inverter with Screen

Solis S6 5kW Single-Phase Low-Voltage Hybrid Inverter with Screen

The Solis S6 5kW Single-Phase Low-Voltage Hybrid Inverter is an advanced solar energy management solution designed for homes, offices and small businesses. It combines solar panel input, low-voltage battery storage, grid power and generator compatibility in one reliable hybrid inverter.

The Solis S6-EH1P5K-L-PLUS provides a rated output power of 5000W and supports suitable lithium-ion and lead-acid batteries operating between 40V and 60V. It includes a large 7-inch LCD display, Bluetooth and app connectivity, allowing customers and installers to view important operating information directly from the inverter.

Main Benefit

The main benefit of the Solis 5kW Low-Voltage Hybrid Inverter is its ability to provide reliable solar energy savings and fast backup power during grid interruptions. The inverter can use available solar energy to power connected appliances, charge the battery bank and reduce electricity usage from the grid.

When grid power fails, the automatic switchover time is less than 4ms. This allows suitable essential loads to continue operating with minimal disruption when a correctly sized battery bank is installed.

Hybrid Inverter Technology

The Solis S6 5kW Hybrid Inverter supports solar panels, battery storage, grid electricity and generator integration. This makes it suitable for customers who require a flexible solar system that can reduce grid electricity consumption while providing backup power during load shedding or unexpected grid failures.

The inverter also supports multiple inverter operation to form a microgrid when a larger system is required. This provides flexibility for installations that may need additional inverter capacity in future.

Benefits

• Reliable 5kW single-phase hybrid inverter output.
• Suitable for residential and small business solar installations.
• Compatible with suitable low-voltage lithium-ion and lead-acid batteries.
• Supports a recommended solar panel array size of up to 10000W.
• Maximum usable solar input power of up to 8000W.
• Two independent MPPT trackers.
• Maximum battery charging and discharging current of up to 112A.
• Generator-compatible for extended backup duration.
• Dual backup ports for intelligent load management.
• Automatic backup switchover time of less than 4ms.
• Up to 200% overload capability for 10 seconds.
• Large 7-inch LCD screen.
• Bluetooth and app connectivity.
• Optional WiFi, GPRS and LAN monitoring accessories.
• IP66-rated enclosure.
• Natural cooling for quiet operation.

Solar Panel Compatibility

The Solis S6 5kW Hybrid Inverter supports a recommended maximum solar panel array size of up to 10000W and a maximum usable PV input power of up to 8000W. This allows customers to install a suitably sized solar array for improved daytime energy production and battery charging.

The inverter includes 2 independent MPPT trackers with support for 2 solar panel strings. Its MPPT voltage range is 90V to 435V, while the maximum PV input voltage is 500V. The solar start-up voltage is 90V.

Correct string design remains important. The solar panel voltage and current must remain within the inverter operating limits under expected weather conditions.

Battery Compatibility

The Solis 5kW Low-Voltage Hybrid Inverter supports suitable lithium-ion and lead-acid battery systems operating between 40V and 60V. Communication with compatible lithium batteries is supported through CAN and RS485 interfaces.

The inverter supports a maximum battery charging and discharging power of up to 5000W and a maximum battery charging and discharging current of up to 112A. The battery bank should be selected according to the required backup time, expected electrical loads and the discharge limits of the chosen battery system.

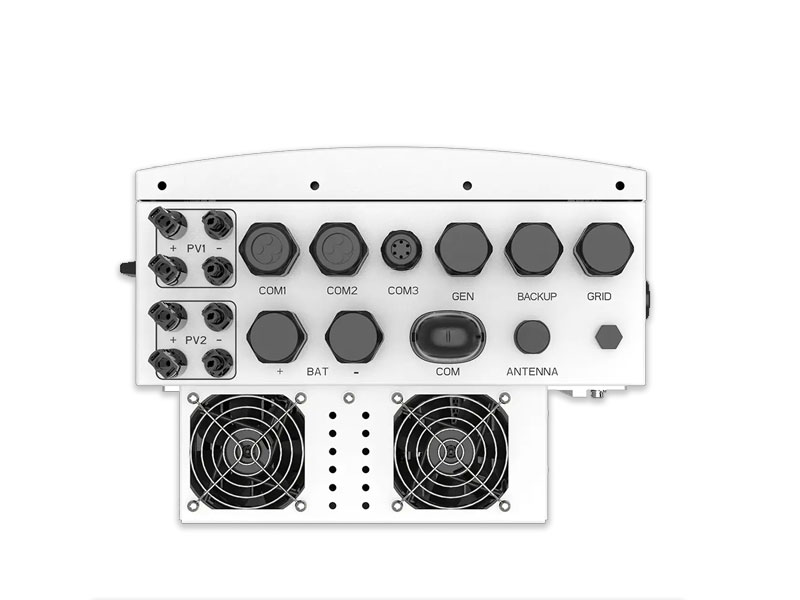

Generator Compatibility

The Solis S6 5kW Hybrid Inverter is generator-compatible, allowing a suitable generator to help extend backup duration during prolonged grid outages. This is useful for properties where reliable power is required during extended electricity interruptions or periods of limited solar production.

The inverter is designed to maintain stable power delivery even when the incoming grid or generator supply fluctuates. Correct generator sizing and professional configuration remain important.

Dual Backup Ports and Load Management

The Solis S6 PLUS model supports dual backup ports for intelligent control of critical and non-critical loads. This allows the solar system to prioritise essential appliances during power interruptions while managing less important loads separately.

Critical loads may include lighting, internet equipment, security systems, televisions, computers and selected refrigeration appliances. High-consumption appliances should be assessed carefully during system planning.

Fast Backup Switchover

The Solis 5kW Hybrid Inverter provides an automatic backup switchover time of less than 4ms. This helps suitable essential loads continue operating during load shedding or grid failures with minimal interruption.

The inverter also supports up to twice its rated backup output power for 10 seconds. This helps accommodate temporary appliance start-up requirements, provided the overall solar system and battery bank are correctly sized.

Screen, Monitoring and Communication

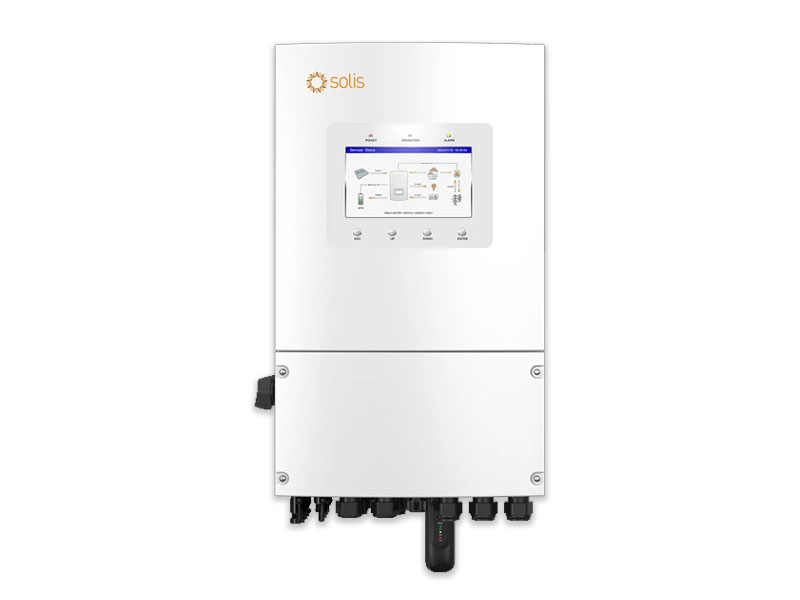

The Solis S6 5kW Hybrid Inverter includes a large 7-inch LCD display for convenient local monitoring and configuration. Bluetooth and app connectivity are included, allowing customers and installers to access important inverter information more easily.

The inverter supports RS485 and CAN communication interfaces. Optional WiFi, GPRS and LAN monitoring accessories are also available for customers who require additional remote monitoring functionality.

Performance

The Solis S6 5kW Hybrid Inverter provides a maximum efficiency of up to 96.2% and an EU efficiency of up to 96.1%. Its maximum battery charging efficiency is up to 95.3% from solar panels and up to 93.9% from AC power. Maximum battery-to-AC discharge efficiency is up to 93.8%.

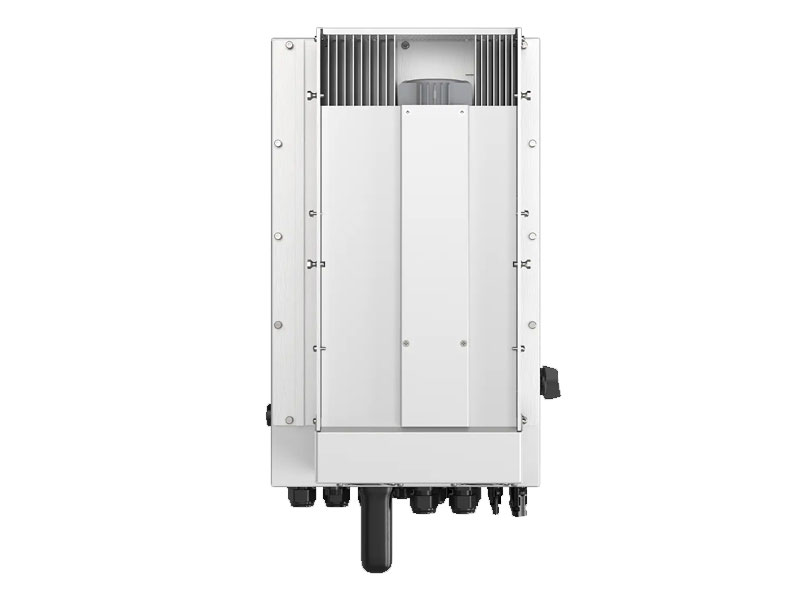

The IP66-rated enclosure provides improved protection against dust and water exposure. The inverter uses natural cooling, helping reduce operating noise and maintenance requirements.

Applications

• Residential solar installations.
• Load shedding backup power systems.
• Home battery storage systems.
• Small business solar installations.
• Office backup power systems.
• Grid-connected hybrid solar systems.
• Generator-assisted backup systems.
• Essential appliance backup systems.
• Properties requiring critical and non-critical load management.
• Expandable microgrid installations.

Technical Specifications

• Brand: Solis
• Model: S6-EH1P5K-L-PLUS
• Product Type: Low-Voltage Hybrid Solar Inverter
• Phase: Single Phase
• Rated Output Power: 5000W
• Maximum Apparent Output Power: 5000VA
• Rated Grid Voltage: 220V / 230V
• Rated Grid Frequency: 50Hz / 60Hz
• Grid Connection: L / N / PE
• Rated Grid Output Current: 22.8A / 21.8A
• Maximum Grid Output Current: 22.8A / 21.8A
• Power Factor: Greater Than 0.99
• Total Harmonic Distortion: Less Than 2%
• Recommended Maximum PV Array Size: 10000W
• Maximum Usable PV Input Power: 8000W
• Maximum PV Input Voltage: 500V
• Rated PV Voltage: 330V
• PV Start-Up Voltage: 90V
• MPPT Voltage Range: 90V to 435V
• Number of MPPT Trackers: 2
• Maximum Number of Solar Strings: 2
• Maximum PV Input Current: 16A / 16A
• Maximum PV Short-Circuit Current: 20A / 20A
• Compatible Battery Types: Lithium-Ion and Lead-Acid
• Battery Voltage Range: 40V to 60V
• Maximum Battery Charging and Discharging Power: 5000W
• Maximum Battery Charging and Discharging Current: 112A
• Battery Communication: CAN and RS485
• Backup Output Power: 5000W
• Backup Surge Power: Up to Two Times Rated Power for 10 Seconds
• Backup Switchover Time: Less Than 4ms
• Maximum AC Passthrough Current: 40A
• Maximum Efficiency: 96.2%
• EU Efficiency: 96.1%
• Battery Charging Efficiency from Solar Panels: Up to 95.3%
• Battery Charging Efficiency from AC Power: Up to 93.9%
• Battery Discharge to AC Efficiency: Up to 93.8%
• Display: 7-Inch LCD Screen
• Included Connectivity: Bluetooth and App Connectivity
• Communication: RS485 and CAN
• Optional Monitoring: WiFi, GPRS and LAN
• Ingress Protection Rating: IP66
• Cooling Concept: Natural Cooling
• Operating Temperature: -40°C to +60°C
• Maximum Operating Altitude: 3000m
• Dimensions: 335mm x 560mm x 253mm
• Weight: 23kg
• Grid Connection Standard: NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683 and EN 50530
• Safety and EMC Standards: IEC/EN 62109-1/-2 and EN 61000-6-2/-3

Protection Features

• Ground fault monitoring.
• DC reverse polarity protection.
• Optional AFCI 2.0 protection.
• Overvoltage protection.
• Battery protection through compatible communication.
• IP66-rated enclosure.

Warranty

The Solis S6 5kW Single-Phase Low-Voltage Hybrid Inverter includes a 10-year warranty, subject to the applicable warranty terms and conditions.

Correct installation, battery compatibility, solar panel string sizing, inverter configuration and electrical protection remain important for reliable long-term performance. The inverter should be installed and commissioned by a suitably qualified installer.
