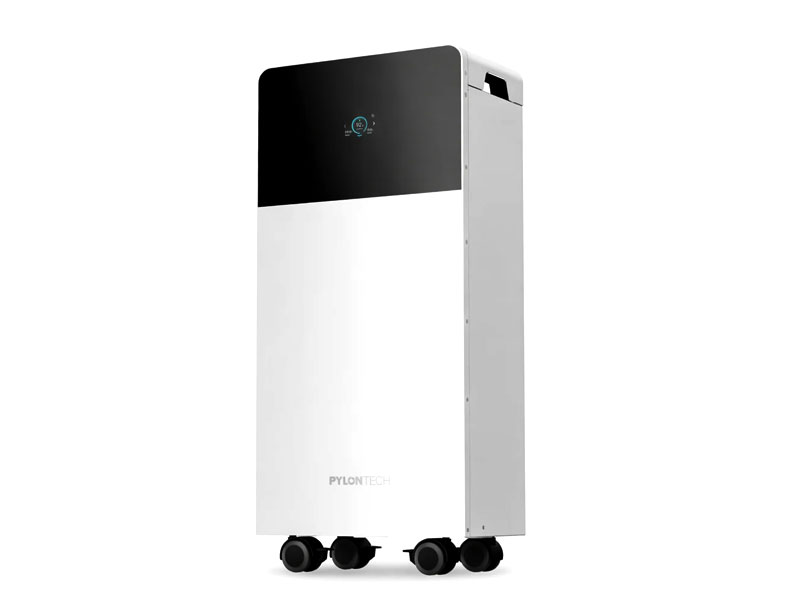

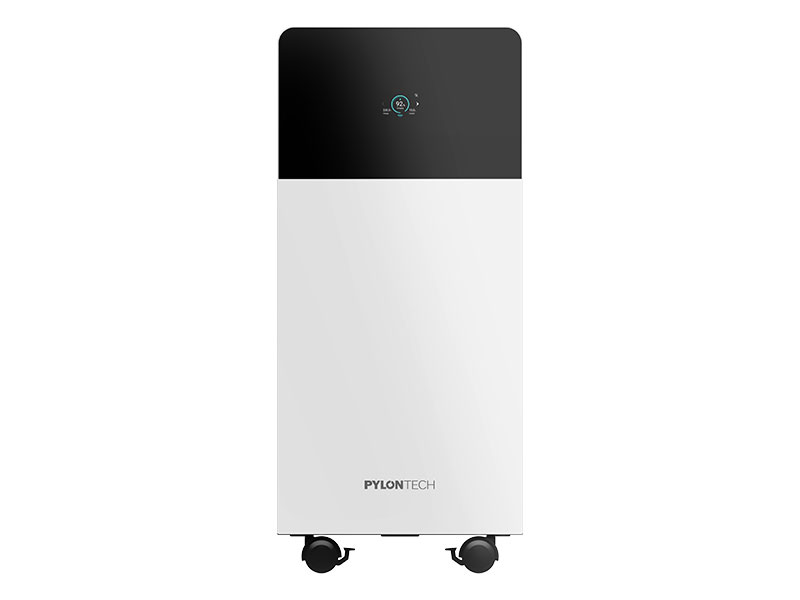

Pylontech Fidus Plus 16kWh Wall Mount Lithium Battery

Pylontech Fidus Plus 16kWh Wall Mount Lithium Battery

The Pylontech Fidus Plus 16kWh Lithium Battery is a premium residential and commercial energy storage solution designed to deliver exceptional performance, advanced monitoring capabilities, and industry-leading safety. Built using advanced lithium iron phosphate (LiFePO4) technology, the Fidus Plus provides reliable backup power, increased solar self-consumption, and scalable energy storage for demanding applications.

With a substantial 16kWh usable capacity, 100% depth of discharge capability, integrated Bluetooth and WiFi monitoring, and support for up to 20 batteries in parallel, the Fidus Plus is designed for homeowners and businesses seeking long-term energy independence.

Massive 16kWh Energy Storage Capacity

The Fidus Plus offers a large energy reserve suitable for powering homes, offices, farms, and commercial facilities. Its high-capacity design enables more solar energy to be stored during the day and utilised during evening hours, grid outages, or periods of high electricity demand.

• 16.08kWh nominal battery capacity
• 16.08kWh usable capacity
• 100% depth of discharge capability
• Ideal for high-consumption properties
• Extended backup runtime

Advanced LiFePO4 Battery Technology

The battery uses lithium iron phosphate chemistry, one of the safest and most reliable battery technologies available for solar energy storage systems.

Benefits of LiFePO4 Technology

• Enhanced safety and thermal stability
• Long operational lifespan
• Excellent cycle performance
• High charging efficiency
• Low maintenance requirements
• Reliable long-term energy storage

100% Depth of Discharge

The Fidus Plus supports 100% depth of discharge, allowing users to utilise the full battery capacity when required. This maximises available backup power and increases overall energy storage efficiency.

The battery is designed to provide dependable daily cycling while maintaining long-term performance and reliability.

Designed for Extreme Conditions

The Fidus Plus has been engineered for harsh environmental conditions and demanding installation environments.

• IP65 dust and water protection
• Designed for outdoor installations
• Salt-air resistant construction
• Smoke-resistant design
• Suitable for coastal environments
• Integrated low-temperature charging support

The battery incorporates intelligent heating functionality that assists charging performance in cold weather conditions.

Superior Safety and Reliability

Safety is a core design feature of the Fidus Plus battery platform.

• Advanced Battery Management System
• Multi-layer protection architecture
• Overcharge protection
• Over-discharge protection
• Temperature protection
• Current protection
• Optional integrated aerosol fire suppression capability

Integrated Smart Monitoring

The battery includes advanced monitoring functionality, allowing users and installers to monitor battery performance and system operation.

• Integrated display screen
• Bluetooth monitoring
• WiFi monitoring
• Real-time battery information
• System diagnostics and monitoring

Flexible Installation Options

The Pylontech Fidus Plus offers installation flexibility for different project requirements.

• Wall-mounted installation
• Floor-standing installation
• An optional wheel kit is available
• An optional wall mounting bracket is available
• Professional residential and commercial deployment

Scalable Energy Storage Platform

The Fidus Plus supports substantial system expansion for larger energy storage requirements.

• Up to 20 batteries per battery group
• Up to 6 battery groups supported
• Large-scale residential applications
• Commercial energy storage projects
• Future-proof expansion capability

This scalability makes the battery suitable for everything from residential backup power to larger commercial solar energy storage systems.

Advanced Communication Compatibility

The battery supports industry-standard communication protocols used by leading hybrid inverter manufacturers.

• CAN communication
• RS485 communication
• Smart inverter integration
• Advanced battery monitoring

Please note that while the battery can be used with Kodak inverters via voltage settings, BMS communication compatibility is not supported.

Applications

• Residential solar systems
• Hybrid inverter systems
• Commercial solar systems
• Backup power installations
• Off-grid solar applications
• Agricultural energy storage
• Energy independence projects
• Large-scale battery storage systems

Technical Specifications

• Battery Chemistry: LiFePO4
• Nominal Voltage: 51.2V
• Nominal Capacity: 16.08kWh
• Usable Capacity: 16.08kWh
• Depth of Discharge: 100%
• Charge Voltage: 56.0V – 56.8V
• Discharge Voltage: 40V – 56.8V
• Continuous Charge Current: 200A
• Continuous Discharge Current: 200A
• Peak Charge/Discharge Current: 300A (15 Seconds)
• Communication: CAN / RS485
• Monitoring: Display Screen, Bluetooth, WiFi
• Protection Rating: IP65
• Anti-Corrosion Rating: C5-M
• Cooling: Natural Cooling
• Dimensions: 435 × 240 × 900 mm
• Weight: 130kg
• Cycle Life: 8000 Cycles
• Design Life: 15 Years
• Warranty: 10 Years

Installation Requirements

This battery must be installed and commissioned by a qualified solar installer or electrician. All installations must comply with local electrical regulations and manufacturer requirements.

For Kodak inverter installations without BMS communication, the minimum discharge voltage should be set to 50.0V, and the maximum charge voltage should be set to 55.5V.

Why Buy From JC Solar Panels?

JC Solar Panels supplies premium lithium batteries, solar panels, hybrid inverters, and complete renewable energy solutions throughout South Africa. We assist residential, agricultural, and commercial customers with reliable energy storage solutions backed by professional support and industry expertise.

The Pylontech Fidus Plus 16kWh delivers exceptional storage capacity, industry-leading monitoring capabilities, and outstanding long-term reliability for modern solar energy systems.
