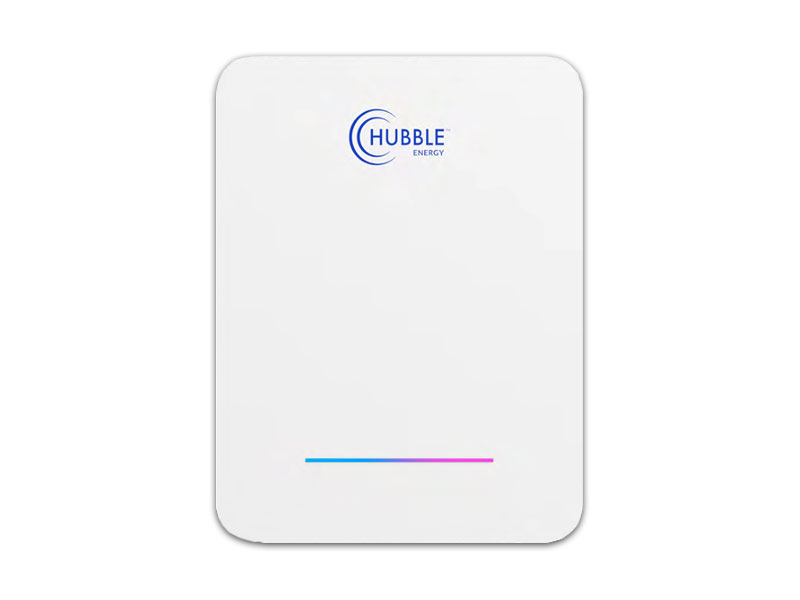

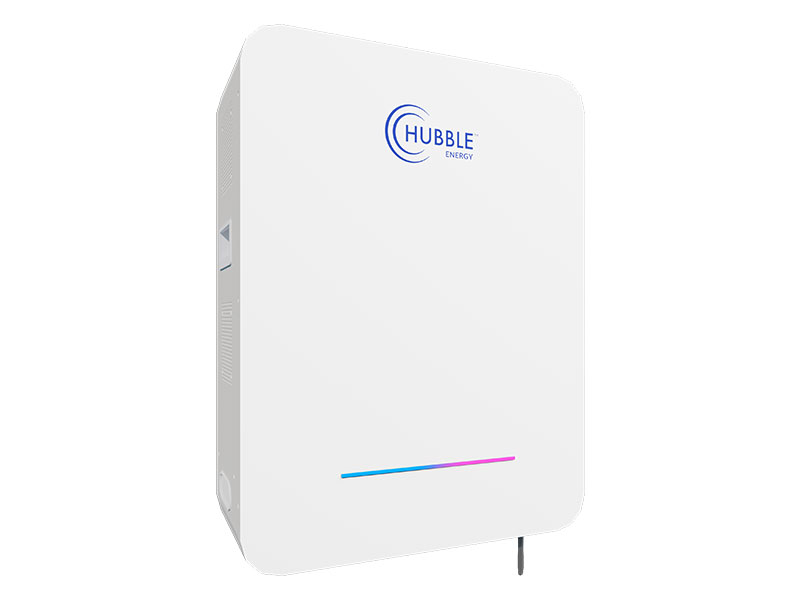

Hubble AM-10 10.10kWh 200Ah 51.2V Battery

Hubble AM-10 10.10kWh 200Ah 51.2V Battery for Sale at JC Solar Panels

Unlock superior energy storage with the Hubble AM-10 10.10kWh 200Ah 51.2V Battery, available at JC Solar Panels. Designed with Prismatic LiFePO4 cells, this battery is built for durability and efficiency, backed by a comprehensive 10-year unlimited cycle warranty.

Hubble AM-10 10.10kWh 200Ah 51.2V Battery Key Features:

• Unlimited Cycle Warranty: Enjoy peace of mind with a warranty that supports unlimited cycles (Ts & Cs apply).
• Prismatic LiFePO4 Cells: Reliable and long-lasting battery technology.
• 1C High-Performance Lithium Battery: Delivers robust performance for your energy needs.
• Optional 24/7 Monitoring: Stay connected with the Hubble Cloudlink for round-the-clock battery monitoring.
• Advanced BMS: Features a current limiting function for enhanced safety.
• Flexible Installation: Easy to install with wall mount or shelf rack options.
• Long Service Life: A high cycle life ensures prolonged usability.
• Broad Compatibility: Works seamlessly with most inverters and chargers.
• User-Friendly Design: Heavy-duty side handles make handling and mounting easy.
• Comprehensive Protection: Built-in safeguards against over-charge, over-discharge, and over-temperature.
• CAN Bus Integration: Fully integrates with leading inverter brands like Deye, Sunsynk, Luxpower, Kodak, and Victron Energy inverters.

Discover the power and reliability of the Hubble AM-10 battery for your solar energy needs.

Hubble AM-10 10.10kWh 200Ah 51.2V Battery specifications:

Model: Hubble AM-10

Rated Capacity (5HR): 200 Ah

Nominal Voltage: 51.2 V

Design Capacity: 10 kWh

Equalized Charge Voltage: 55.2 V

Max. Continuous Charging Current: 200 A

Max. Continuous Discharging Current: 200 A

C Rating: 1.0 C

Depth of Discharge: 100%

Weight Approx: 89 Kg

Monitoring: Optional Cloud link

Parallel: connection up to 8 packs with full communications

Dimensions (WxDxH): 673mm x 618mm x 193mm

Ports: CAN-bus, Battery Link Ports

Cells: Prismatic LiFePO4

Design Life: +/- 15 Years

Cycle Life @ 1C: Unlimited cycles within the Hubble Energy 10-year warranty (Ts & Cs Apply)

Certification: CE IEC UN38.3

Outer Package Material: White baked lacquer steel case

Operating Temperature Charging: -10 to +50°C | Humidity: 15% to 75% | Storage: 10 to +50°C

Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
