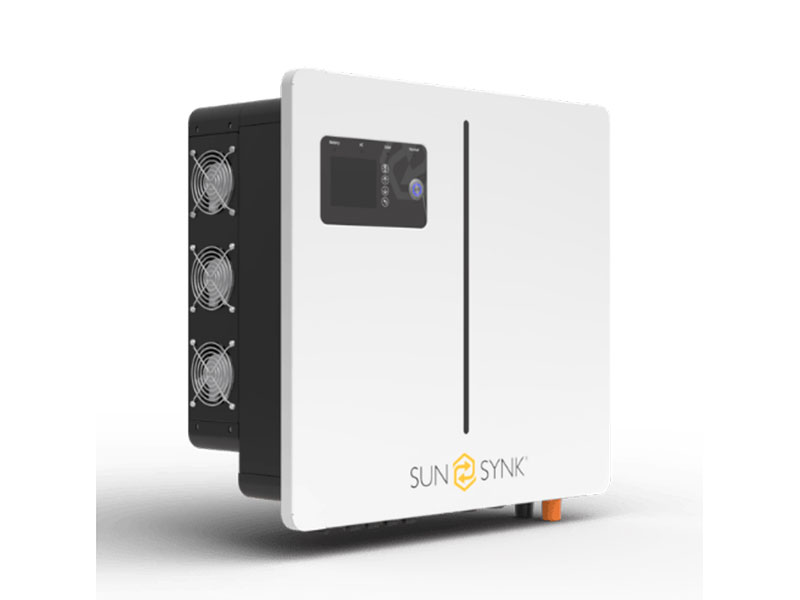

Sunsynk Lynks Pro 10kW 48V Single Phase IP65 Hybrid Inverter
R30, 562.50
In stock

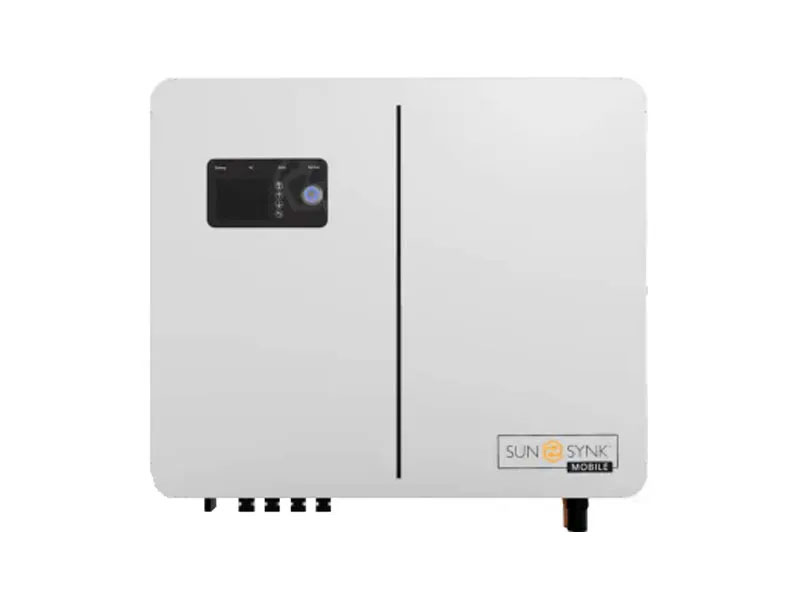

Sunsynk Lynks Pro 10kW 48V Single Phase Hybrid Inverter
- 2nd Generation 10kW single-phase hybrid inverter
- Compatible with 48V lithium and lead-acid battery systems
- Maximum solar PV input capacity of 15kWp
- Dual MPPT design with a rated input current of 28A per MPPT
- IP65-rated enclosure suitable for indoor and outdoor installation
- Touchscreen LCD interface for system control and monitoring
- Wi-Fi dongle and CT clamp included as standard
- Suitable for residential and light-commercial solar installations
Sunsynk Lynks Pro 10kW 48V Sin...
R30, 562.50
Sunsynk Lynks Pro 10kW Hybrid Inverter Overview
The Sunsynk Lynks Pro 10kW hybrid inverter is a high-performance energy solution designed for residential and commercial solar installations requiring higher output capacity and flexibility. Built for modern solar systems, this inverter integrates solar PV, battery storage, and grid power into one intelligent system.
This 10kW 48V single phase hybrid inverter allows you to maximise solar generation, store excess energy in batteries, and ensure uninterrupted power supply during outages. With its IP65-rated enclosure, it is suitable for both indoor and outdoor installations, making it ideal for a wide range of environments.
Why Choose the Sunsynk Lynks Pro 10kW Inverter
The Sunsynk 10kW inverter is designed for high-demand households and commercial applications where performance, scalability, and reliability are essential.
- 10kW output for larger residential and commercial systems
- Compatible with lithium and lead-acid batteries
- Dual MPPT for optimal solar generation
- Supports grid-tied, hybrid, and off-grid configurations
- Expandable to 3-phase systems
- Fast switching time for uninterrupted power supply
Advanced Hybrid Energy Management
This inverter intelligently manages energy flow between solar panels, batteries, and the grid. It prioritises solar usage, stores excess energy for later use, and seamlessly switches to backup power when needed.
System Benefits
- Reduced reliance on grid electricity
- Lower electricity costs
- Reliable backup during power outages
- Optimised energy usage
Key Features
- Maximum DC input power of 15kWp
- Dual MPPT with up to 28A input per tracker
- Touchscreen LCD for easy control and monitoring
- Wi-Fi connectivity for remote monitoring
- CT clamp included for energy management
- IP65 protection for outdoor installation
- High efficiency up to 97.6%
Technical Specifications
- Rated Power: 10kW
- Battery Voltage: 48V
- Phase: Single Phase
- Max PV Input Power: 15kW
- MPPT Voltage Range: 120V – 450V
- Max Input Current: 28A per MPPT
- Output Voltage: 220/230/240Vac
- Efficiency: Up to 97.6%
- Protection Rating: IP65
Applications
The Sunsynk 10kW hybrid inverter is ideal for large residential homes, small to medium businesses, and backup power systems. It is suitable for grid-tied, hybrid, and off-grid installations.
Compatibility and Installation
This inverter is compatible with a wide range of lithium and lead-acid battery systems. Installation must be carried out by a qualified electrician in accordance with local electrical regulations.
Warranty and Registration
The inverter includes a standard 5-year warranty. Warranty registration is required after installation to ensure full coverage and manufacturer support.
Important Compatibility Note
This model is not compatible with older Lynks IP41 inverter ranges. Ensure correct system design before installation.
Why Buy from Enerlux
Enerlux supplies high-quality solar equipment across South Africa, offering reliable products, expert system design, and professional support. Our solutions are built for long-term performance and maximum return on investment.
Important Compatibility and Warranty Information
The Sunsynk Lynks Pro 2nd Generation IP65 inverter is not compatible with the older Lynks IP41 inverter range. It is important to ensure correct system design and compatibility before installation.
All Sunsynk inverter installations must be registered after commissioning to activate the full manufacturer warranty. Warranty registration must be completed within 7 days of commissioning. Failure to register the system within this timeframe may result in the warranty being void.
Professional Installation Requirement
This product must be installed by a qualified electrician or solar technician. All installations must comply with local electrical regulations, wiring standards, and safety requirements.
Enerlux will not be held liable for any product malfunction, system failure, or damage resulting from incorrect installation, improper system design, or failure to comply with applicable electrical standards.
Only logged in customers who have purchased this product may leave a review.
| Weight | 36 kg |
|---|---|
| Dimensions | 62 × 58.5 × 25.5 cm |
| Brand: | Sunsynk |
| MPN: | SUN-LYNKS-PRO-10.0 |
| Condition: | new |
| Product Type: | Hybrid Inverter |
| Inverter Type: | Hybrid Inverter |
| Model: | Lynks Pro 2nd Generation |
| Power Rating: | 10kW |
| Output Power: | 10000W |
| Peak Power: | 20000VA |
| Phase: | Single Phase |
| Frequency: | 50/60Hz |
| Battery Voltage: | 48V |
| Battery Voltage Range: | 40V – 60V |
| Battery Type: | Lithium (LiFePO4) / Lead-Acid |
| Max Charge Current: | 180A |
| Max Discharge Current: | 220A |
| MPPT: | Dual MPPT |
| Number of MPPT Trackers: | 2 |
| Max PV Input Power: | 15000W |
| Max DC Input Voltage: | 500V |
| MPPT Voltage Range: | 120V – 450V |
| Start-Up Voltage: | 150V |
| Max Input Current: | 28A per MPPT |
| Efficiency: | 97.6% |
| MPPT Efficiency: | 99.9% |
| Battery to Load Efficiency: | 94% |
| Protection Rating: | IP65 |
| Installation Location: | Indoor / Outdoor |
| Operating Temperature: | -20°C to +50°C |
| Connectivity: | Wi-Fi |
| Monitoring: | Remote Monitoring Supported |
| Display: | Touchscreen LCD |
| Switching Time: | 10ms |
| THD Output: | <3% |
| Dimensions: | 620 x 585 x 255 mm |
| Weight: | 36 kg |
| Mounting Type: | Wall Mount |
| Colour: | White |
| Material: | Metal Enclosure |
| Grid Compatibility: | Grid-Tied / Off-Grid / Hybrid |
| Parallel Capability: | Supports Multi-Unit / 3-Phase |
| Application: | Residential, Commercial, Backup Power |
| Warranty: | 5 Years |
| Warranty Registration: | Required within 7 days of commissioning |
Payment security
Frequently Asked Questions – Sunsynk Lynks Pro 10kW Hybrid Inverter
What is the Sunsynk Lynks Pro 10kW inverter used for?
The Sunsynk Lynks Pro 10kW inverter is designed for larger residential and light-commercial solar systems requiring solar PV management, battery storage and backup-power functionality.Is this a single-phase or three-phase inverter?
This specific model is a 10kW single-phase hybrid inverter. It can also be used as part of a correctly designed three-phase configuration where multiple compatible units are installed and configured by qualified professionals.What battery voltage does the inverter use?
The inverter uses a nominal 48V battery platform and supports a battery voltage range of 40V to 60V.Can the Sunsynk Lynks Pro work with lithium batteries?
Yes. The inverter supports compatible LiFePO4 lithium battery systems with Battery Management System communication. Battery compatibility should be confirmed before installation.Can the inverter work with lead-acid batteries?
Yes. The inverter is compatible with supported lead-acid battery systems when correctly configured.How many solar panels can be connected?
The inverter supports up to 15kWp of solar PV input. The number of panels will depend on the selected panel wattage, string voltage, current limits and site-specific system design.How many MPPTs does the Sunsynk Lynks Pro 10kW inverter have?
The inverter includes two MPPT trackers. Each MPPT has a rated input current of 28A and a maximum input current of 30A.Can the inverter be installed outdoors?
Yes. The enclosure has an IP65 protection rating suitable for indoor and outdoor installation, provided the installation location complies with the manufacturer's requirements.Does the inverter include remote monitoring?
Yes. A Wi-Fi dongle is included as standard for supported remote monitoring after the inverter has been installed and configured.Does the inverter include a CT clamp?
Yes. A CT clamp is included as standard for energy monitoring and management.What is the backup transfer time?
The transfer time between bypass and inverter operation is approximately 10 milliseconds.Is this inverter compatible with the older Sunsynk Lynks IP41 range?
No. The Sunsynk Lynks Pro 2nd Generation IP65 inverter is not compatible with the older Lynks IP41 inverter range.What are the dimensions of the inverter?
The inverter dimensions are approximately 620 × 585 × 255mm.How much does the inverter weigh?
The inverter weighs approximately 36kg.What warranty does the inverter include?
The inverter includes a standard 5-year manufacturer warranty. The equipment must be registered after commissioning within the applicable manufacturer timeframe.Who should install the Sunsynk Lynks Pro inverter?
The inverter must be installed and commissioned by a qualified electrician or solar professional in accordance with applicable electrical regulations and manufacturer requirements.Related products
-
