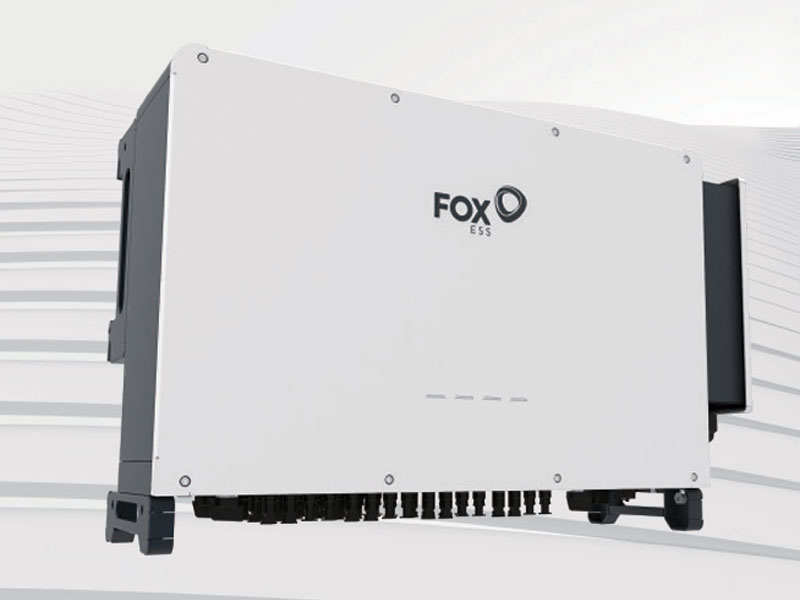

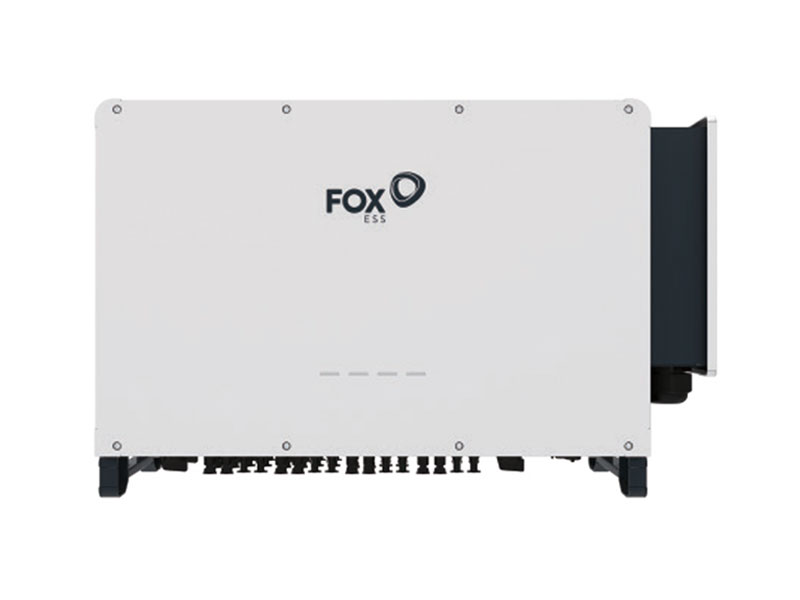

110kW FoxESS R Series Grid Tie Inverter

110kW FoxESS R Series Grid Tie Inverter

The 110 kW FoxESS R Series (G2) Grid Tie Inverter delivers utility-scale performance for commercial and industrial PV systems. Built to handle demanding conditions, it combines 98.6% peak efficiency, wide operating windows, and robust safety features in a compact, IP66-rated chassis.

High-current PV & yield optimisation

Supporting 20 A per string and multiple independent MPPT trackers, the R110-G2 accommodates high-power and bifacial modules without clipping. String-level current monitoring enables quick diagnosis of performance issues, safeguarding system yield.

Protection & reliability

The R110-G2 comes with AFCI arc-fault detection, DC/AC Type II surge protection, PID recovery, and comprehensive insulation and residual current monitoring. With THDi <3% and adjustable power factor from 0.8 leading to 0.8 lagging, it ensures grid compliance and long-term reliability.

Environmental resilience

With IP66 and C5 corrosion protection, the unit operates in harsh environments from -30 °C to 60 °C and altitudes up to 4000 m. A smart air-cooling system maintains optimal internal temperatures under full load.

Smart connectivity & control

Built-in Wi-Fi/LAN/4G options, RS485, and USB interfaces provide flexible communication pathways. Real-time monitoring and remote updates via the FoxESS cloud and app make commissioning and O&M simple and efficient.

Technical highlights

• Rated AC Output: 110 kW (3-phase, 400 V, 3W+N+PE)

• Max. PV Input Voltage: 1100 V

• Max. Efficiency: 98.6%

• Dimensions & Weight: ~975 × 630 × 360 mm; ~90 kg

• Protection Features: AFCI, surge, PID recovery, insulation & RCM

• Night Consumption: ~3.5 W

Ideal for: Rooftop and ground-mount C&I PV systems seeking high yield, fast service diagnostics, and reliable grid integration.
