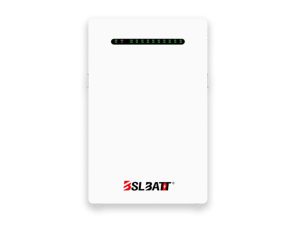

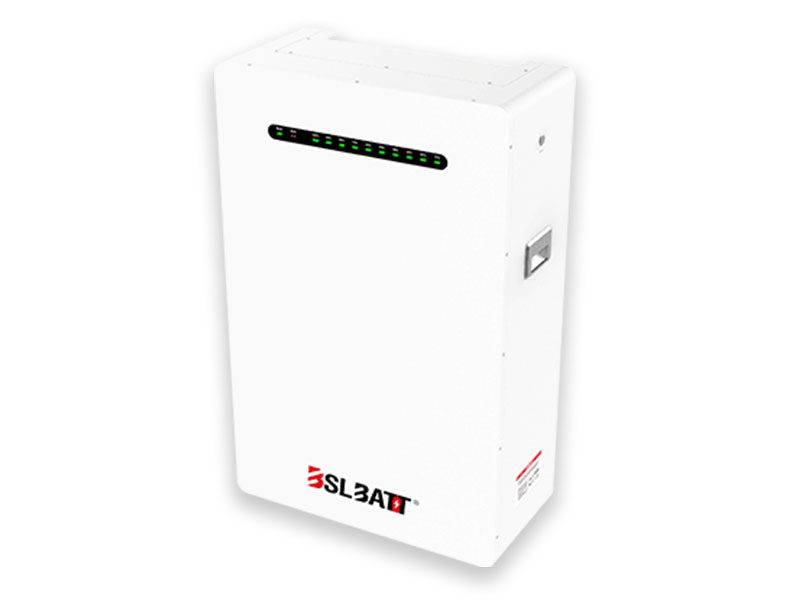

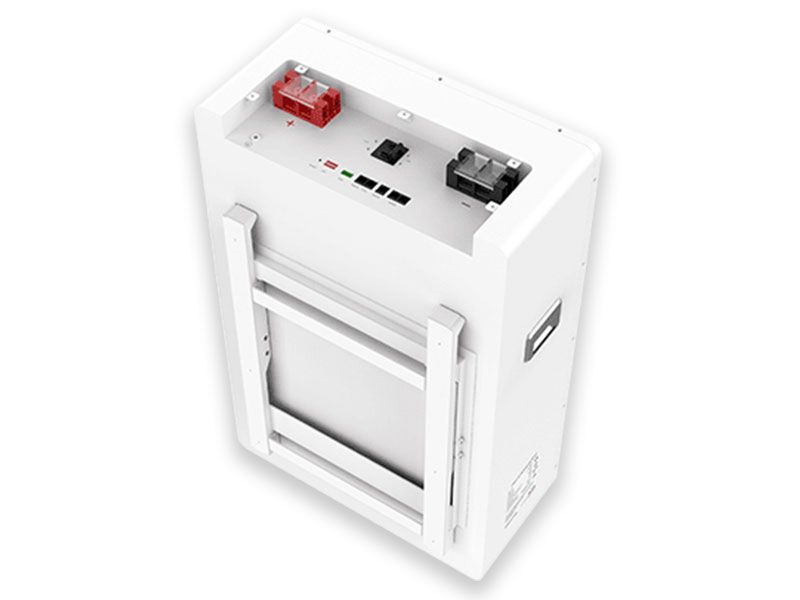

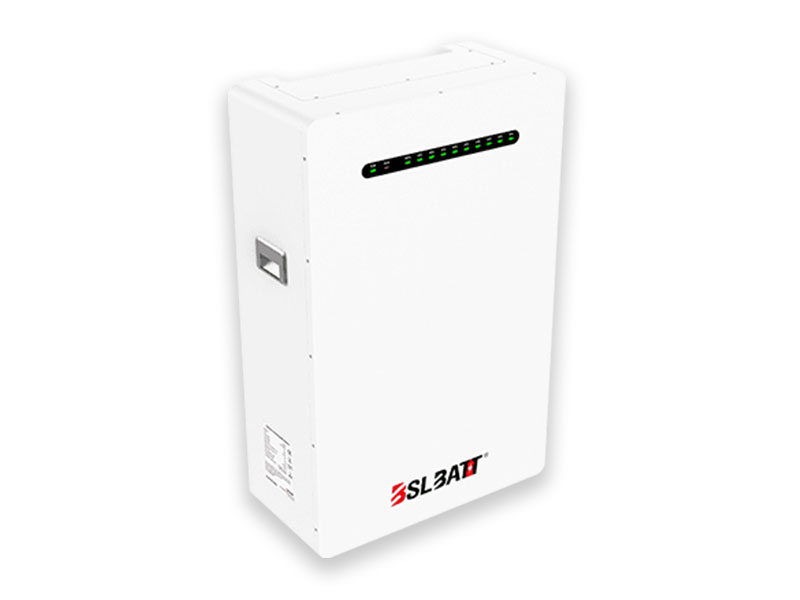

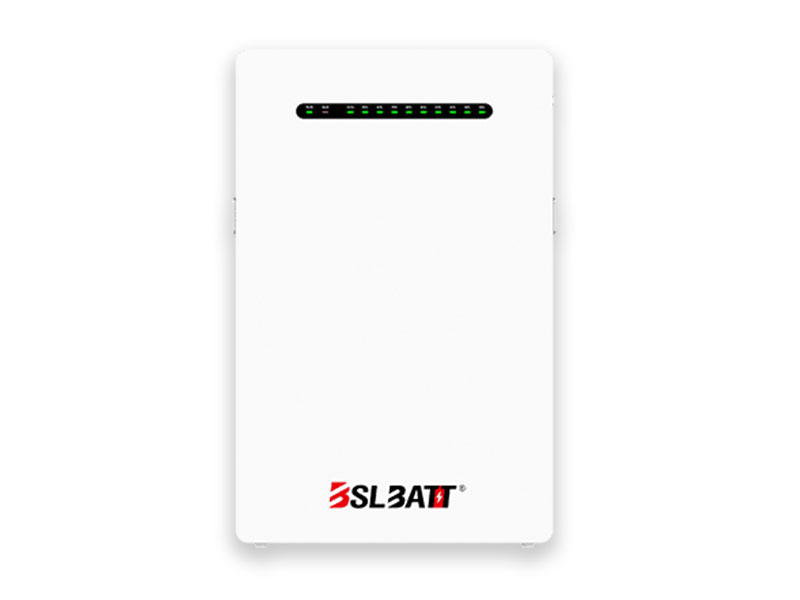

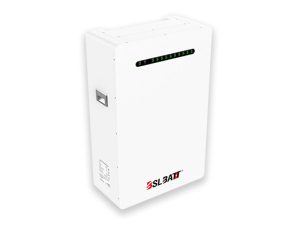

BSL BATT Neuro 16kWh 51.2V 314Ah Wall Mount Battery

BSL BATT Neuro 16kWh 51.2V 314Ah Wall Mount Battery

High-Performance Energy Storage for Solar Systems

The BSL BATT Neuro 16kWh 51.2V 314Ah Wall Mount Battery is a high-capacity LiFePO₄ energy-storage solution for residential and small commercial solar systems. It delivers stable, reliable power during load-shedding, peak demand, or full off-grid operation. With long cycle life, high usable capacity and intelligent control, it’s ideal for customers who want serious backup and daily energy shifting from their solar installation.

Advanced LiFePO₄ Technology

This battery uses lithium iron phosphate (LiFePO₄) chemistry, known for its excellent thermal stability, long lifespan and safety. With a 95% depth of discharge and more than 4000 cycles at 0.5C charge and discharge (at 25±2°C), the Neuro 16kWh is built for daily cycling over many years while maintaining strong capacity and output.

Modular and Scalable Design

The BSL Neuro 16kWh supports expansion of up to 32 units in parallel. This allows total storage capacity to scale from a single 16.076kWh battery to well over 500kWh as energy needs grow. It’s a perfect choice for customers who want to start with a solid base system and expand later without replacing the original battery.

Key Features

• Compatible with 40+ inverter brands

• Modular design supporting expansion up to 514.24kWh

• 16.07kWh high-capacity LiFePO₄ battery with 51.2V / 314Ah rating

• Built with a 16-cell pack delivering stable 51.2V nominal voltage

• Design life of over 15 years under standard operating conditions

• 10-year manufacturer warranty

• Optional WiFi and Bluetooth monitoring modules

• Uses Tier One A+ LiFePO₄ cells for maximum safety and reliability

• 1C continuous discharge rate for strong power delivery

• Over 8,000 cycle lifespan under ideal conditions

• High energy density of 123.68 Wh/kg

• Suitable for on-grid and off-grid solar energy systems

Technical Specifications

• Model: B-LFP48-300PW

• Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)

• Nominal Voltage: 51.2V

• Nominal Capacity: 314Ah

• Nominal Energy: 16 076Wh (16.076kWh)

• Usable Energy: 15 272Wh (15.272kWh)

• Cell Configuration: 16S1P

• Depth of Discharge: 95%

Voltage

• Discharge Voltage: 47V

• Charge Voltage: 55V

Charge Current / Power

• Rated Charge Current / Power: 80A / 4.096kW

• Max Charge Current / Power: 160A / 8.192kW

• Peak Charge Current / Power: 210A / 10.752kW (1s)

Discharge Current / Power

• Rated Discharge Current / Power: 200A / 10.24kW

• Max Discharge Current / Power: 220A / 11.264kW

• Peak Discharge Current / Power: 250A / 12.80kW (1s)

Environmental & Mechanical

• Working Temperature (Charge): 0–55°C

• Working Temperature (Discharge): -20–55°C

• Storage Temperature: 0–35°C

• Monthly Self-Discharge: ≤3%

• Humidity: ≤60% RH

• Cooling Type: Natural cooling

• Protection Level: IP20

• Dimensions (H × W × D): 778 × 510 × 270 mm

• Dimensions with Wheels: 844 × 510 × 240 mm

• Weight: 135kg (±3%)

Life & Warranty

• Cycle Life: >4000 cycles (0.5C charge / 0.5C discharge at 25±2°C)

• Design Life: >15 years (at 25°C / 77°F)

• Warranty: 10 years

Communication & Expansion

• Communication: RS232, RS485, CAN, WiFi (optional), Bluetooth (optional)

• Expansion: Up to 32 units in parallel

Built for Safety, Reliability and Long-Term Use

The robust LiFePO₄ chemistry, high-quality cells and intelligent BMS work together to protect against over-charge, over-discharge, over-current and abnormal temperature. With natural cooling and a durable enclosure, the Neuro 16kWh battery is designed for safe, long-term operation in demanding environments.

Ideal for Load-Shedding and Solar Optimisation

This battery is ideal for South African load-shedding conditions. The high discharge power allows homeowners to keep essential loads running, including lights, routers, TVs, fridges and selected plugs, while the large usable capacity supports deep overnight usage when paired with a properly sized solar system.

FAQ

Is the BSL Neuro 16kWh battery suitable for daily cycling?
Yes. With LiFePO₄ chemistry, 95% depth of discharge and more than 4000 cycles at 0.5C, it is designed for daily charge and discharge in solar applications.

Can I expand the storage later?
Yes. You can connect up to 32 units in parallel, allowing the system to grow from a single 16kWh battery to a large multi-battery bank.

What inverters can I use with this battery?
The battery includes RS232, RS485 and CAN communication, plus optional WiFi and Bluetooth, making it compatible with most modern hybrid and off-grid inverters that support CAN/RS485 battery communication.

How heavy is the battery and where should it be installed?
The battery weighs approximately 135kg, so it should be mounted on a structurally strong wall or mounted with appropriate brackets, typically in a garage, plant room or dedicated battery area.

Is it suitable for off-grid systems?
Yes. With high discharge power, large usable capacity and long life, the Neuro 16kWh works well in both grid-tied hybrid systems and full off-grid solutions.

Does it require maintenance?
No regular maintenance is required. The built-in BMS manages cell balancing and protection automatically. Just ensure proper installation, ventilation and that environmental limits are respected.
