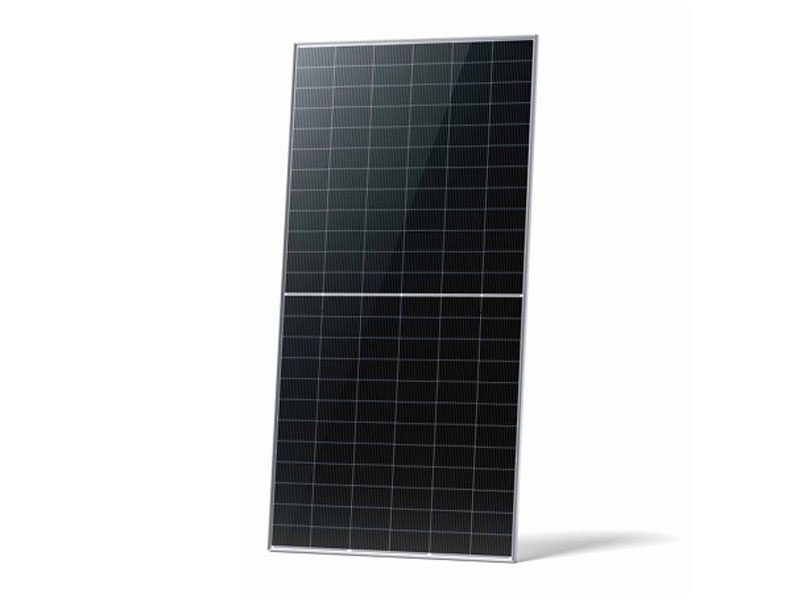

590W Tiger Neo N-Type Bifacial Solar Panel – Jinko JKM590N-66HL4M-BDV
Due to size of the panels and size of the gap between the slats of the pallets (both length and width entries) fork lift truck on site is required to offload these modules.
590W Tiger Neo N-Type Bifacial...
R1, 901.01
Out of stock
Need Help?
062 881 5615
info@jcsolarpanles.co.za
590W Tiger Neo N-Type Bifacial Solar Panel – Jinko Dual Glass N-Type High Efficiency Module
590W Tiger Neo N-Type Bifacial Solar Panel Overview
The 590W Tiger Neo N-type bifacial solar panel from Jinko Solar is a high-efficiency photovoltaic module designed for large residential, commercial, agricultural, and utility-scale solar installations. Using advanced N-type mono-crystalline cell technology and a bifacial dual-glass design, the 590W Tiger Neo N-type bifacial solar panel delivers strong energy output, excellent durability, and long-term performance stability.
The Jinko JKM590N-66HL4M-BDV solar panel forms part of the Tiger Neo N-type series, which is engineered to reduce degradation and maximise real-world energy yield over the lifespan of a solar power system.
N-Type Cell Technology Benefits of the 590W Tiger Neo Solar Panel
The 590W Tiger Neo N-type bifacial solar panel uses N-type mono-crystalline cells, offering lower light-induced degradation (LID) and reduced long-term performance loss compared to traditional P-type panels. This allows the 590W Tiger Neo solar panel to maintain higher output levels throughout its operational life.
Jinko’s Hot 2.0 technology and Super Multi-Busbar (SMBB) design further enhance performance by improving current collection efficiency, reducing internal resistance, and increasing reliability under high temperature and partial shading conditions.
Bifacial Dual Glass Design for Increased Energy Yield
The 590W Tiger Neo N-type bifacial solar panel features a bifacial dual-glass construction, allowing the rear side of the module to generate additional power from reflected and diffuse light. When installed over reflective surfaces such as concrete, gravel, or light-coloured roofing, the 590W Tiger Neo bifacial solar panel can deliver increased total energy yield compared to monofacial panels.
The dual-glass design also improves mechanical strength and environmental resistance, making the panel suitable for demanding outdoor conditions.
Electrical Performance of the 590W Tiger Neo N-Type Bifacial Solar Panel
At standard test conditions (STC), the 590W Tiger Neo N-type bifacial solar panel delivers a rated output of 590W. The module operates at a maximum power voltage (Vmp) of approximately 40.05V and a maximum power current (Imp) of approximately 14.73A. The open-circuit voltage (Voc) is approximately 48.32V, with a short-circuit current (Isc) of approximately 15.54A.
The positive power tolerance of 0 to +3% ensures dependable output performance for accurate system design and energy forecasting.
Mechanical Strength, Build Quality & Outdoor Durability
The 590W Tiger Neo N-type bifacial solar panel is designed to withstand harsh environmental conditions. It is certified for a front-side mechanical load of up to 5400Pa and a rear-side load of up to 2400Pa, making it suitable for rooftop, ground-mount, and utility-scale solar installations.
The panel includes 2.0mm anti-reflection coated front glass, 2.0mm heat-strengthened rear glass, an anodised aluminium alloy frame, and an IP68-rated junction box to ensure long-term durability.
Low Degradation & Long-Term Warranty Protection
The 590W Tiger Neo N-type bifacial solar panel offers excellent long-term reliability with an annual degradation rate of approximately 0.40%. This ensures higher lifetime energy production compared to many conventional solar panels.
The module is supported by a 12-year product warranty and a 30-year linear power output warranty, providing confidence and long-term value for system owners.
Applications for the 590W Tiger Neo Solar Panel
The Jinko 590W Tiger Neo N-type bifacial solar panel is ideal for large residential systems, commercial rooftops, agricultural installations, ground-mounted arrays, and utility-scale solar farms where high efficiency and long-term performance are essential.
Technical Specifications – 590W Tiger Neo N-Type Bifacial Solar Panel
- Manufacturer: Jinko Solar
- Model: JKM590N-66HL4M-BDV
- Cell Technology: N-Type Mono-crystalline
- Module Type: Bifacial Dual Glass
- Rated Power (Pmax): 590W
- Module Efficiency: ~21.9%
- Maximum Power Voltage (Vmp): ~40.05V
- Maximum Power Current (Imp): ~14.73A
- Open Circuit Voltage (Voc): ~48.32V
- Short Circuit Current (Isc): ~15.54A
- Power Tolerance: 0 ~ +3%
- Maximum System Voltage: 1500V DC
- Maximum Series Fuse Rating: 35A
- Operating Temperature: -40°C to +85°C
- Front Glass: 2.0mm AR Coated Glass
- Back Glass: 2.0mm Heat Strengthened Glass
- Frame: Anodised Aluminium Alloy
- Junction Box: IP68 Rated
- Dimensions: 2382 × 1134 × 30 mm
- Weight: 32.4 kg
- Mechanical Load (Front): 5400Pa
- Mechanical Load (Rear): 2400Pa
- Annual Degradation: 0.40%
- Warranty: 12-Year Product / 30-Year Linear Power Warranty
Only logged in customers who have purchased this product may leave a review.
Datasheets
FAQ
Q1: What makes the 610W Tiger Neo panel different from standard solar panels?
The 610W Tiger Neo uses N-type mono-crystalline cell technology, which offers lower degradation, higher efficiency, and better long-term performance compared to traditional P-type panels. It also features a bifacial dual-glass design, allowing it to generate power from both the front and rear sides.
Q2: What does “bifacial” mean, and do I really get more power?
Bifacial means the panel can produce electricity from both sides. The rear side captures reflected and diffuse light from surfaces such as concrete, light-coloured roofing, gravel, or ground. Under suitable installation conditions, bifacial gain can significantly increase total energy yield compared to monofacial panels.
Q3: Is the 610W Tiger Neo panel suitable for residential installations?
Yes, but it is best suited for large residential systems, estates, and properties with sufficient roof or ground-mount space. Due to its physical size and high wattage, it is more commonly used in commercial, agricultural, and utility-scale installations, though many homeowners with space constraints prefer it for higher output per panel.
Q4: Can this panel be used with hybrid and off-grid inverters?
Yes. The 610W Tiger Neo solar panel is compatible with most modern hybrid, grid-tied, and off-grid inverters, provided the system is correctly designed and string voltages remain within inverter limits. Always verify inverter MPPT voltage and current ratings during system design.
Q5: What inverter sizes pair well with 610W panels?
These panels are commonly paired with 8kW to 30kW inverters, depending on the number of panels used and system design. They are especially popular in systems using high-voltage MPPT ranges to allow longer strings and improved efficiency.
Q6: How durable is the dual-glass design?
The dual-glass construction provides excellent mechanical strength and environmental resistance. The panel is rated to withstand 5400Pa snow load and 2400Pa wind load, making it suitable for harsh weather conditions, coastal environments, and long-term outdoor exposure.
Q7: Does the panel degrade over time?
Yes, like all solar panels, but at a much slower rate. The 610W Tiger Neo panel has an annual degradation rate of approximately 0.40%, which is significantly lower than many conventional panels. This ensures higher energy output over the system’s lifetime.
Q8: What warranties are included with this solar panel?
The panel is backed by:
-
12-year product warranty
-
30-year linear power output warranty
This guarantees strong long-term performance and manufacturer support.
Q9: Is this panel suitable for coastal or high-humidity areas?
Yes. The panel’s dual-glass structure, anodised aluminium frame, and IP68 junction box provide excellent resistance to moisture, corrosion, and dust, making it suitable for coastal and industrial environments.
Q10: How heavy is the 610W Tiger Neo panel?
Each panel weighs approximately 32.4 kg. Due to its size and weight, professional handling and installation are recommended, especially for rooftop installations.
Q11: Can these panels be mounted on standard solar mounting structures?
Yes. The 610W Tiger Neo panel is compatible with most commercial and utility-grade mounting systems. Due to its larger dimensions, installers must ensure the mounting structure is rated for the panel’s size and weight.
Q12: Is this panel suitable for ground-mounted solar arrays?
Absolutely. These panels are ideal for ground-mount systems, solar farms, and large open-area installations where bifacial gain and rear-side light capture can be maximised.
Q13: What temperature conditions can the panel operate in?
The panel operates reliably in temperatures ranging from -40°C to +85°C, making it suitable for a wide range of climates and environmental conditions.
Q14: Does the panel perform well in hot conditions?
Yes. N-type cells have better temperature performance than many P-type panels, meaning reduced power loss during hot weather and improved real-world energy yield in warm climates like South Africa.
Q15: Is professional installation required?
Yes. Due to the panel’s size, weight, and electrical characteristics, professional installation is strongly recommended to ensure safety, compliance, and optimal performance.
| Weight | 32.4 kg |
|---|---|
| Dimensions | 238.2 × 113.4 × 3 cm |
| Brand: | Jinko Solar |
| Product Type: | N-type Solar Panel |
| Color: | Black |
| Weight: | 27kg |
| Dimensions: | 2278mm × 1134mm × 30mm |
| Rated Power: | 590 W |
