Overview of the Yingli 550W Solar Panel

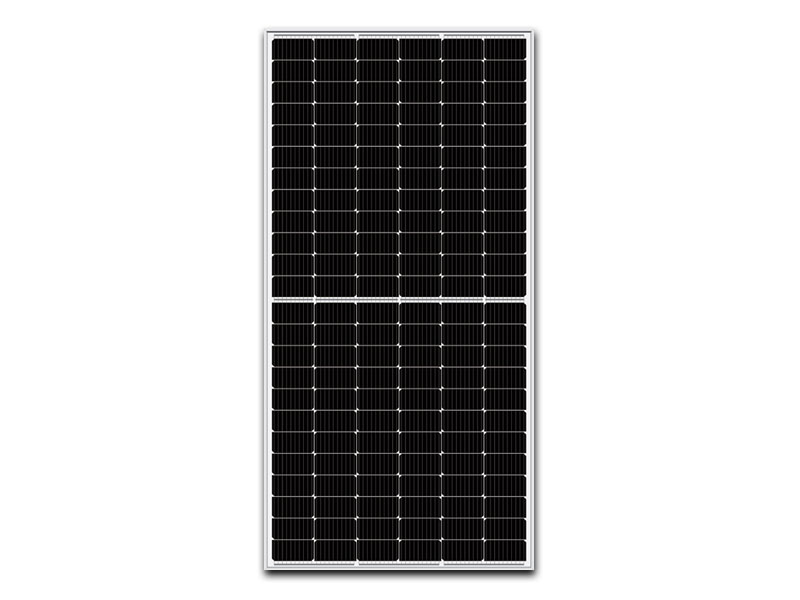

The Yingli 550W solar panel from the YLM-J 3.0 PRO series is a high-power monocrystalline PERC photovoltaic module designed for residential, commercial, and utility-scale solar installations. With a proven glass-backsheet construction and half-cell design, this panel delivers strong energy yield, mechanical durability, and reliable long-term performance.

What the Yingli 550W Panel Is Designed to Do

This solar panel converts sunlight into DC electrical energy and is designed to:

• Deliver high power output per module to reduce overall system costs
• Improve real-world energy yield through half-cell and multi-busbar design
• Operate reliably in harsh environmental conditions
• Provide stable long-term performance with low degradation

What This Panel Is Not

This product is a photovoltaic module only.

• It is not an inverter and does not produce AC power
• It does not store electrical energy
• It does not include mounting structures or electrical protection equipment

Cell Technology and Module Design

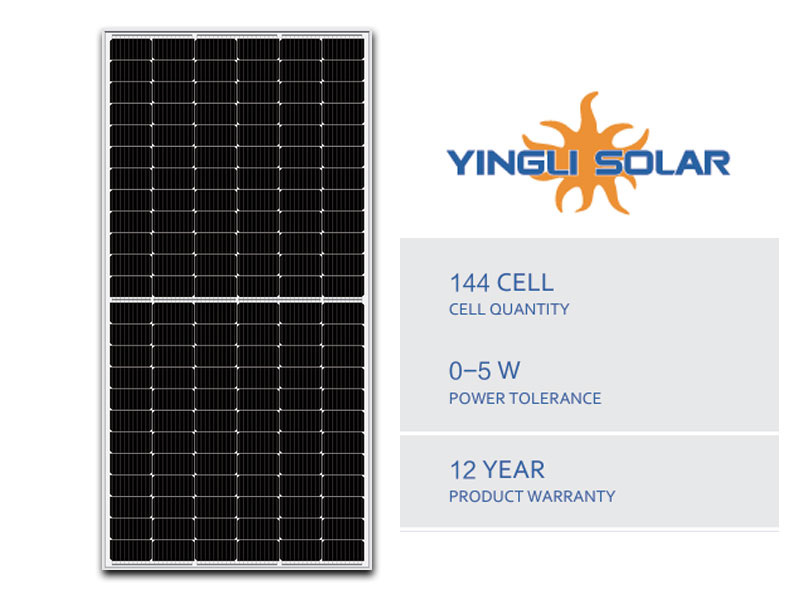

The Yingli 550W panel uses high-efficiency P-type monocrystalline PERC cells with a half-cell layout.

• Cell type: P-type monocrystalline PERC
• Cell configuration: 144 half-cells (6 × 24)
• Multi-busbar design reduces resistive losses
• Half-cell architecture improves performance under partial shading

Electrical Performance at STC

• Nominal maximum power (Pmax): 550 W
• Maximum power voltage (Vmp): 42.00 V
• Maximum power current (Imp): 13.10 A
• Open-circuit voltage (Voc): 49.82 V
• Short-circuit current (Isc): 13.97 A
• Module efficiency: 21.29%
• Power tolerance: 0 ~ +5 W

Temperature Performance

• Nominal operating cell temperature (NOCT): 45 ± 2°C
• Temperature coefficient of Pmax: -0.35% / °C
• Temperature coefficient of Voc: -0.27% / °C
• Temperature coefficient of Isc: +0.05% / °C

Mechanical Specifications

• Module dimensions: 2278 × 1134 × 30 mm
• Module weight: 28.0 kg
• Front glass: Low-iron tempered glass, 3.2 mm
• Backsheet: High-durability polymer backsheet
• Frame: Anodised aluminium alloy

Junction Box and Cabling

• Junction box protection rating: IP68
• Bypass diodes: 3
• Cable cross-section: 4 mm²
• Cable length: ±300 mm (custom lengths available)

Operating Limits and Load Ratings

• Operating temperature range: -40°C to +85°C
• Maximum system voltage: 1000 V or 1500 V DC
• Maximum series fuse rating: 25 A
• Maximum static load (front, snow): 5400 Pa
• Maximum static load (back, wind): 2400 Pa
• Hail resistance: 25 mm hail at 23 m/s

Certifications and Compliance

• IEC 61215 and IEC 61730
• UL 61730
• CE certification
• ISO 9001, ISO 14001 and ISO 45001 manufacturing standards

Warranty Information

• Product warranty: 12 years
• Performance warranty: 25-year linear power output warranty
• Year-1 power retention: 97%
• Power retention at year 25: 80%

Typical Applications

• Residential rooftop solar systems
• Commercial and industrial installations
• Ground-mounted solar plants
• Large-scale grid-connected PV systems
