Sunova E-Fox 5kw Inverter 10.2kwh battery

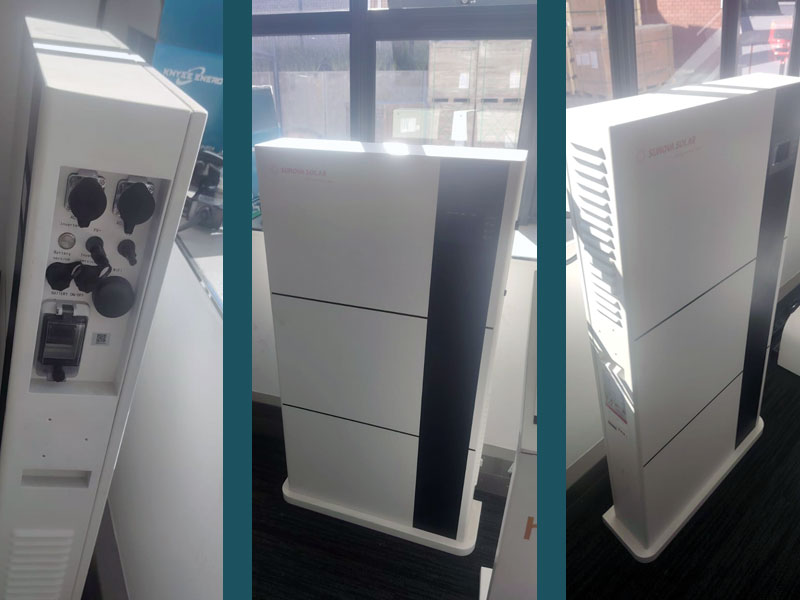

Sunova 5kw Inverter with 2×5.12 kWh Lithium Batteries

Sunova-eFox-WP Series is an off-grid energy storage system, that can connect the solar panels, grid (or generator), and load. It has a built-in LFP battery, an off-grid inverter, and a battery management system (BMS). It has multiple work modes to meet lots of application scenarios and reduce the electricity bill, store energy for emergency backup.

This Sunova 5kw Inverter + 2×5.12kWh Lithium Battery delivers a powerful 10Kw of backup battery power. Perfect for home and office use.

Battery
Rated Voltage: 51.2V
Voltage Range: 44.8~57.6V
Capacity: 10.24kWh
Battery Type: Li-ion (LFP)

AC Output
Rated Power: 5Kw
Output Voltage: 220/230/240Vac ± 5%
Max Output Current: 22.7 A
Output Frequency: 50/60Hz ± 1%
Output Wave: Pure Sine Wave
Output Type: Pluggable Connector

AC Input
Rated Input Voltage: 170~280Vac
AC Input Frequency: 50/60Hz
AC Charge Current (Battery): 30A(0~80A Adjustable)

PV Input
Max PV Input Power: 6Kw
Max PV Input Voltage: 450Vdc
MPPT Voltage Range: 120~430Vdc
MAX PV Input Current: 18A
MAX PV charge current (battery) 100A
