Knyee Energy 16.08kWh 51.2V 314Ah Battery

Knyee Energy 16.08kWh Lithium LiFePO4 Solar Battery

The Knyee Energy ES-LV-16 16.08kWh lithium battery is a high-capacity LiFePO4 (Lithium Iron Phosphate) energy storage battery designed for residential and commercial solar energy systems. With a nominal voltage of 51.2V and a capacity of 314Ah, this battery provides reliable long-term power storage for hybrid solar systems, backup power installations, and off-grid energy applications.

The battery features an advanced Battery Management System (BMS), built-in monitoring, and robust safety protections. With an impressive 8000 cycle lifespan at 80% depth of discharge, the Knyee Energy 16kWh battery delivers excellent long-term value for solar energy storage systems.

High Capacity Solar Energy Storage

The Knyee Energy ES-LV-16 battery offers a large storage capacity ideal for homes and businesses requiring dependable solar backup and energy storage. The high capacity allows the battery to support large loads and store significant solar production during the day for use at night or during power outages.

• Energy Capacity: 16.08kWh
• Nominal Voltage: 51.2V
• Capacity: 314Ah
• Voltage Range: 44V – 58.4V
• Expandable system capacity via parallel connection
• Supports up to 32 batteries in parallel

Advanced Lithium Iron Phosphate (LiFePO4) Technology

The battery uses Lithium Iron Phosphate (LiFePO4) cells which are known for their excellent safety, stability, and long lifespan. LiFePO4 batteries are widely used in modern solar energy storage systems due to their superior thermal stability and deep cycle capability.

• Long lifespan up to 8000 cycles
• Excellent thermal stability
• High energy efficiency
• Deep discharge capability
• Low maintenance energy storage

Smart Battery Management System (BMS)

The integrated Battery Management System continuously monitors battery performance to ensure safe operation and optimal charging and discharging performance.

The system provides multiple layers of protection including:

• Over-charge protection
• Over-discharge protection
• Over-current protection
• Short circuit protection
• Low voltage protection
• Temperature protection

Smart Monitoring and Communication

The Knyee Energy battery includes multiple communication interfaces and monitoring features to ensure compatibility with modern hybrid and off-grid inverters.

• CAN communication
• RS485 communication
• RS232 communication
• Bluetooth connectivity
• WiFi monitoring capability
• Integrated touch screen display

These features allow installers and system owners to monitor battery status, performance, and system health in real time.

High Performance Charging and Discharging

The battery supports high charging and discharging currents, allowing it to operate effectively with large hybrid inverter systems.

Charging Specifications

• Recommended Charging Current: 100A
• Maximum Charging Current: 200A
• Recommended Charging Voltage: 58V
• Maximum Charging Voltage: 58.4V

Discharging Specifications

• Recommended Discharging Current: 100A
• Maximum Discharging Current: 200A
• Battery Cut-off Voltage: 44V
• Battery Recovery Voltage: 48V

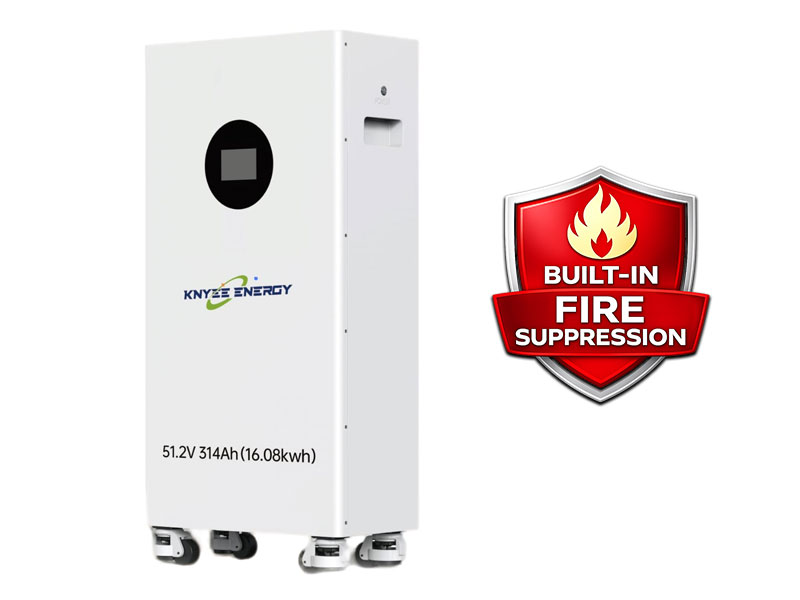

Integrated Safety and Fire Protection

The Knyee Energy ES-LV-16 battery includes built-in safety mechanisms to protect both the battery and the solar energy system. An integrated aerosol fire suppression system adds an additional safety layer for residential and commercial installations.

• Built-in fire suppression system
• Advanced BMS safety protections
• Stable LiFePO4 chemistry
• Temperature monitoring

Battery Construction and Installation

The battery is designed as a durable floor-standing energy storage unit built with a strong sheet metal enclosure. The compact vertical design allows easy installation in solar battery rooms, garages, or energy storage cabinets.

• Dimensions: 900 × 460 × 245 mm
• Weight: 115 kg
• Protection Rating: IP20
• Enclosure Material: Sheet Metal

Certification and Compliance

The Knyee Energy 16kWh lithium battery complies with international safety and transport standards, ensuring reliable operation and safe installation in solar energy systems.

• CE Certification
• UN38.3 Battery Transport Certification
• Class 9 Transport Safety Standard
