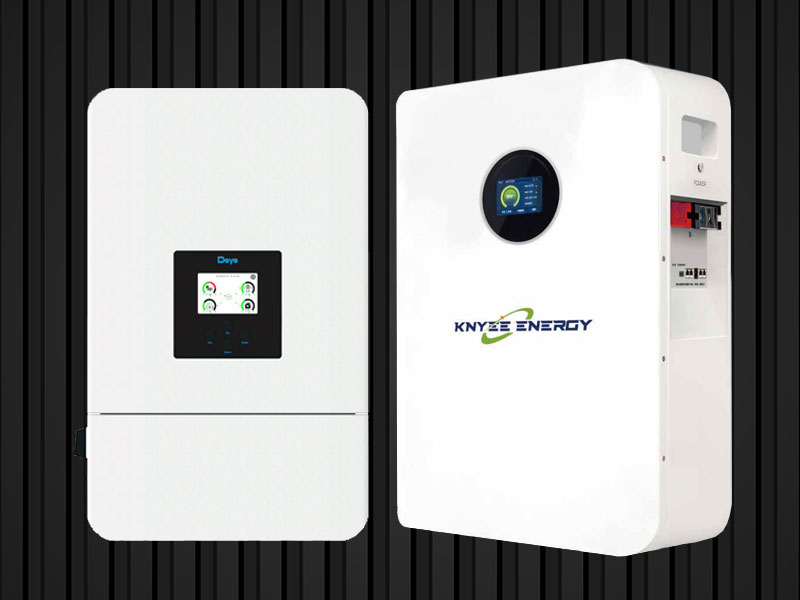

8kW Deye Hybrid Inverter + Knyee 15.36kWh LiFePO₄ Battery Combo

This premium combo pairs the 8kW Deye Single Phase Hybrid Inverter with the Knyee Energy 15.36kWh 51.2V LiFePO₄ Battery, delivering a powerful, reliable, and scalable solar energy storage solution for residential and small commercial applications. It’s perfect for load-shedding protection, energy cost savings, and off-grid capability.

8kW Deye Hybrid Inverter – Key Features

• 8kW Output – Handles large household and small business loads.

• Max Charge/Discharge: 210A for rapid battery cycling.

• Parallel Operation – Up to 16 units for on-grid or off-grid systems.

• Generator Integration – Store energy from diesel generators.

• Flexible PV Input – Max 16kW PV array, 2 MPPTs.

• Advanced Protections – Surge (Type II AC & DC), AFCI (optional), RCD, over-voltage, over-current, short-circuit.

• High Efficiency – 97.6% max, >99% MPPT efficiency.

• Smart Functions – 6 programmable charge/discharge periods, UPS <10ms switchover, time-of-use optimisation.

• Ingress Protection – IP65 for outdoor/indoor installation.

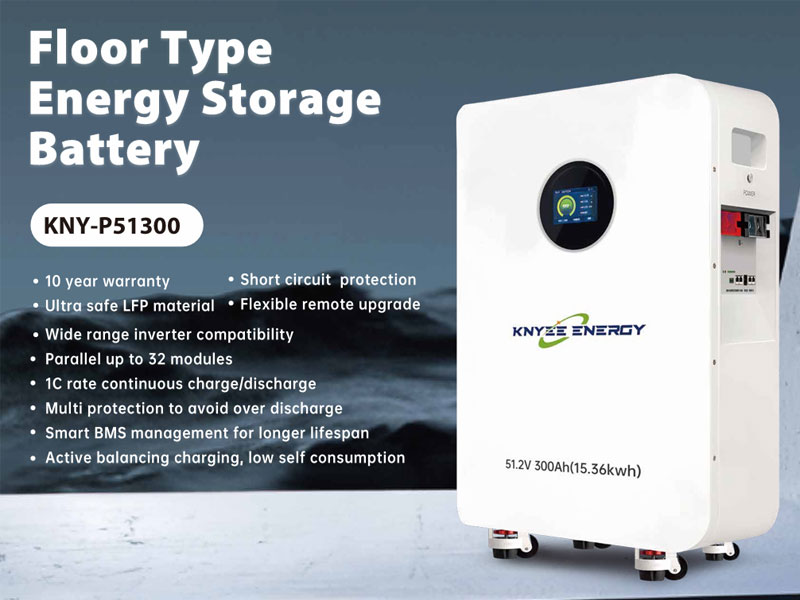

Knyee Energy 15.36kWh Battery – Key Features

• Capacity: 15.36kWh nominal (usable ~12.28kWh @80% DoD).

• Chemistry: LiFePO₄ for long life and safety.

• Cycle Life: 6000+ cycles @80% DoD.

• Smart BMS – Active balancing, CAN/RS485/RS232 communications.

• High Power Output – 200A max discharge, 1C continuous.

• Expandable – Parallel up to 15 units for massive storage.

• Construction – Floor-mounted, sheet-metal enclosure, IP20.

• Warranty – 10 years.

Why Choose This Combo?

• High Power & Capacity – 8kW output with 15.36kWh storage.

• Scalable – Expand both inverter capacity and battery storage as your needs grow.

• Versatile – Works on-grid, off-grid, or hybrid setups.

• Long-Term Reliability – Premium components with long term warranties and excellent after sale support.

Technical Specifications

Inverter – Deye 8kW Hybrid

• Rated Output Power: 8kW

• Max PV Input: 16kW

• MPPT Voltage Range: 150–425V

• Battery Voltage Range: 40–60V

• Max Charge/Discharge Current: 210A

• Max Efficiency: 97.6%

• Protection: IP65, surge, over-voltage, AFCI optional

• Dimensions: 366×589.5×237 mm

• Weight: 26.8 kg

Battery – Knyee 15.36kWh

• Nominal Voltage: 51.2V

• Nominal Capacity: 300Ah

• Usable Energy: ~12.28kWh (80% DoD)

• Cycle Life: 6000+ cycles @80% DoD

• Max Discharge Current: 200A

• Parallel: Up to 15 units

• Dimensions: 800×580×255 mm

• Weight: 126 kg (net)
